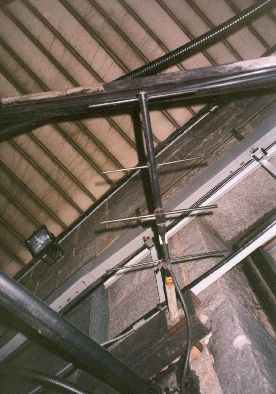

4.element Yagi (QTF 150 Deg.)

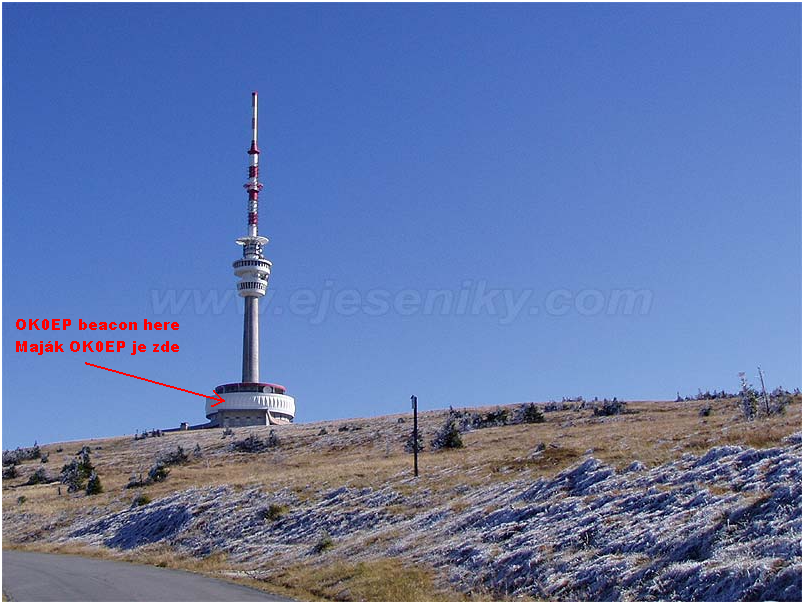

Praded TV transmitter

Spring view to Praded from North side

Praded TV tower in the Moonlight on 31.8.2009, when we left after OK0EP installation

More abt. Praded hill: 1. 2. 3. 4. 5. 6. 7. 8.

Jeseniky mountains in 4k HD video.

 OK0EP Beacon

OK0EP  UHF  Beacon

OK0EP is a 70 cm band beacon made by OK1VPZ and launched as early as 1981. The beacon is located on Praded hill in Jeseniky Mountains (north-east of the Czech Republic, just at the border between JO80OC and JO80OB locators) at height of about 1500 m a.s.l. It is installed on the 3rd floor of the TV transmitter tower. First operation outage was in 1985 (about three months) when the beacon had seriously been damaged by lightning. Since 3rd of July 1985 after upgrade and re-installation the beacon was continuously in the operation without any major interruption till 2009, except one day antenna upgrade. This is the reason why the OK0EP is probably considered as one of the most stable and reliable UHF beacons in Europe. Due to the change of IARU beacon band plan G0RDI allocated a new frequency (432.436MHz) for OK0EP, but at the present time we can not re-tune the beacon without approval of the TV tower owner. For such frequency change they require a new comprehensive measurement by an EU approved laboratory which is too expensive for us.

For that reason the beacon stays on the original frequency until further decision. Last HW check and partial upgrade has been made after 24 years of operation in August 2009 when the oscillator was installed into a new screened box to prevent ingress from the DVB-T TV & FM power transmitters as well as some minor additional circuit modifications in the power supply multiplier, ALC and output circulator. The RF power has been slightly increased to 2W. Beside the beacon HW the position of western antenna has been changed as well to avoid partial screening by other microwave dishes of professional links. The antenna setup remains the same as before: two 4.element Yagis at azimuth of 150 and 280 degrees.

General Beacon Information

Frequency 432.886 MHz
Call OKØEP
Mode FSK
Location 50.04.59 N  17.13.56 E
Ant ASL 1505 m
Antenna 2 x 4 el Yagi
Beam 280 and 150 Deg
ERP abt. 2 x 5 W
Keeper OK1VPZ
License valid till 30.4.2026

Periodic frequency measurment since last HW check in August 2009:

   Date Frequency
28.09.2009 432.886 089
12.09.2010 432.886 070
16.01.2011 432.886 310
15.03.2012 432.886 082
21.10.2012 432.885 908
24.07.2013 432.885 839
24.02.2016 432.885 991
27.06.2018 432.885 679
21.09.2020 432.885 617
05.12.2021 432.885 802

( More abt. our beacon frequency measurments here. here )

(Download of OK0EP signal sample may take few seconds)

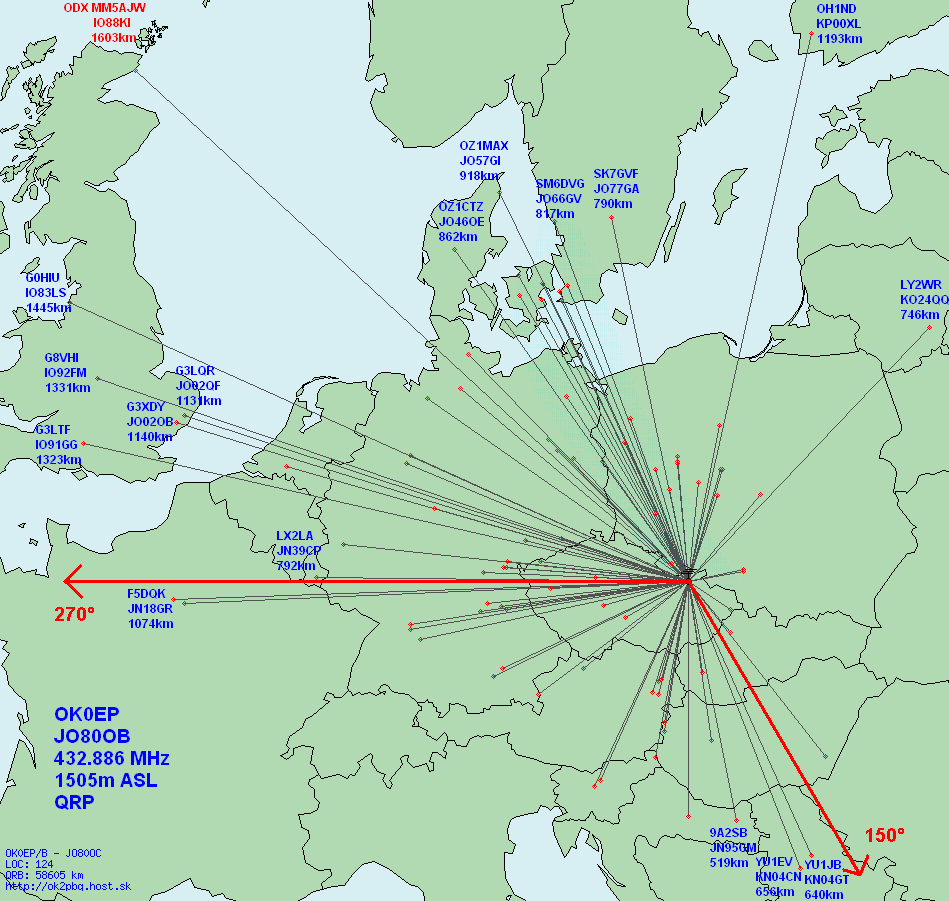

Map of the best DX sites based on DX-CLUSTER spots  (the map has been created by OK2PBQ SW)



Few pictures from last beacon inspection (August 2008)

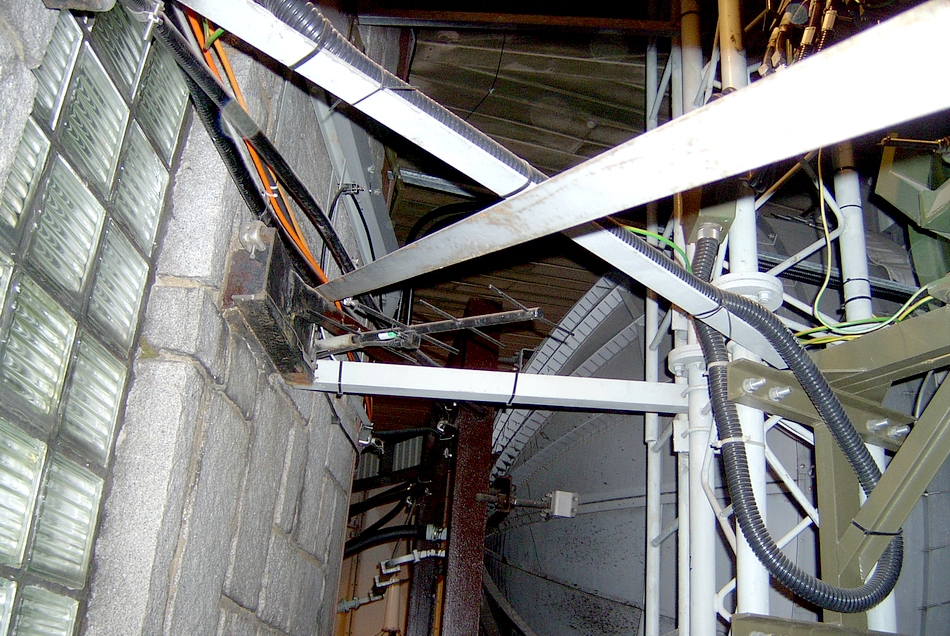

In 20 years the original place of the western antenna has been covered by more professional dish installations,...

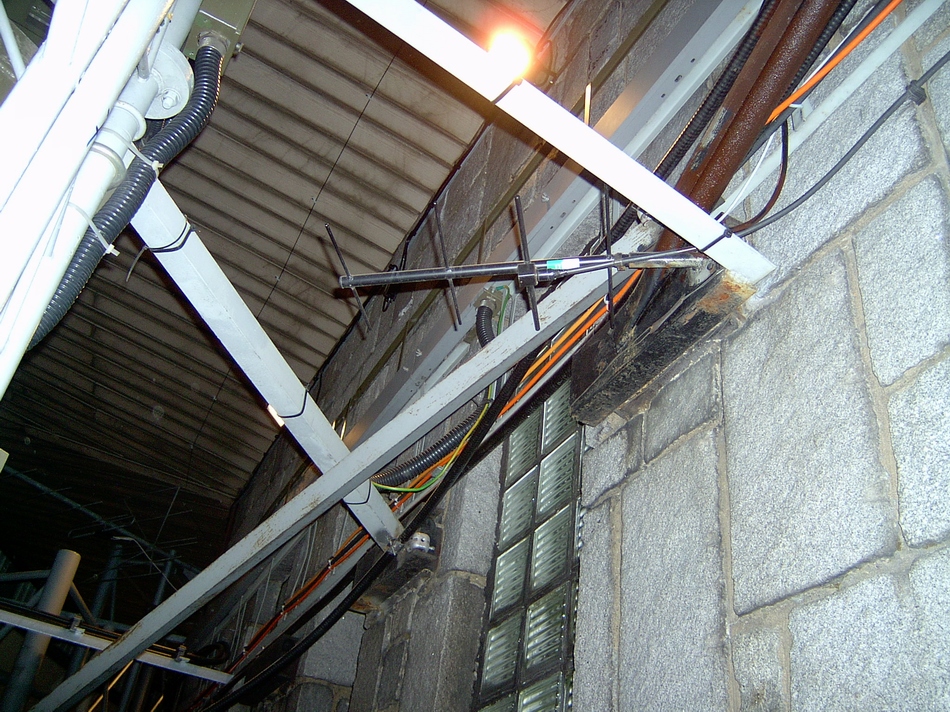

...therefore, the western antenna has been moved to another construction holder (behind the window) to be in the free space.

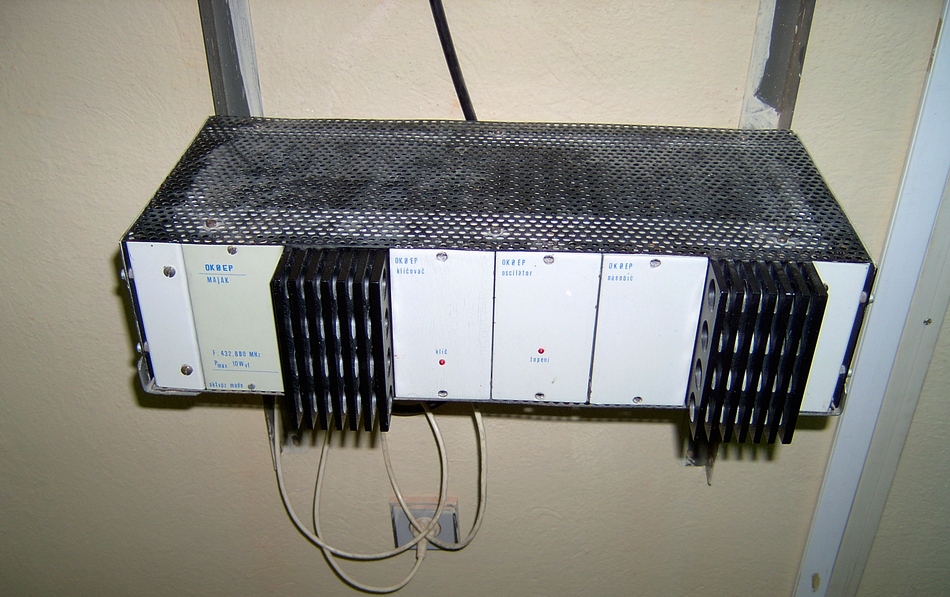

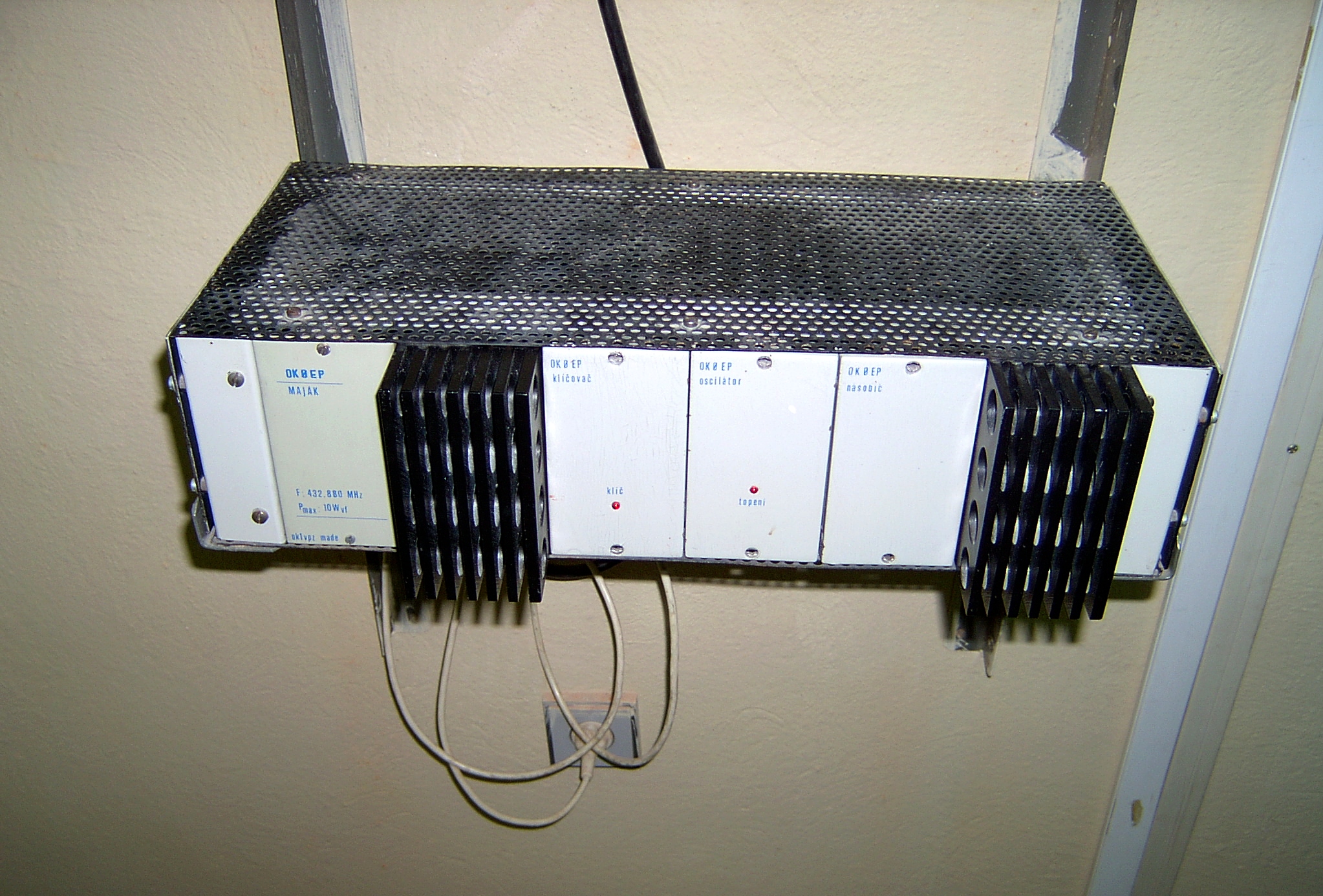

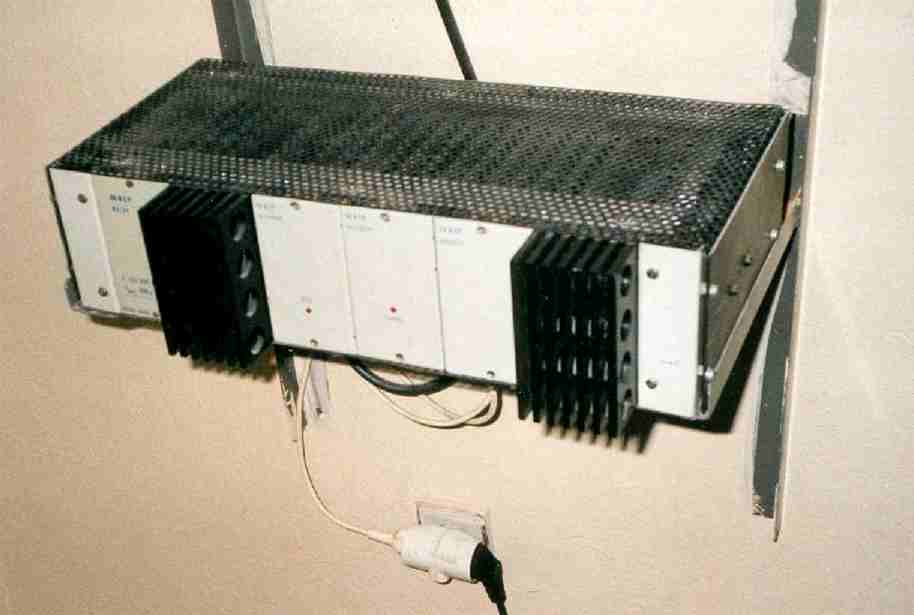

OK0EP beacon made by OK1VPZ in 1981

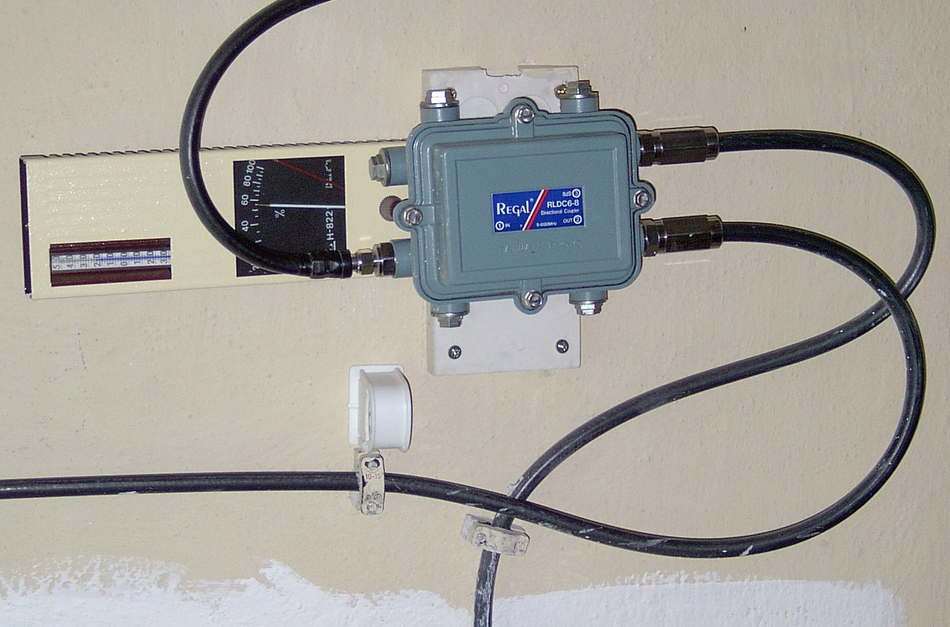

A cable TV box is used for the antenna splitter, but the circuits inside have been modified.


The licence holder - OK1VPZ (2008)

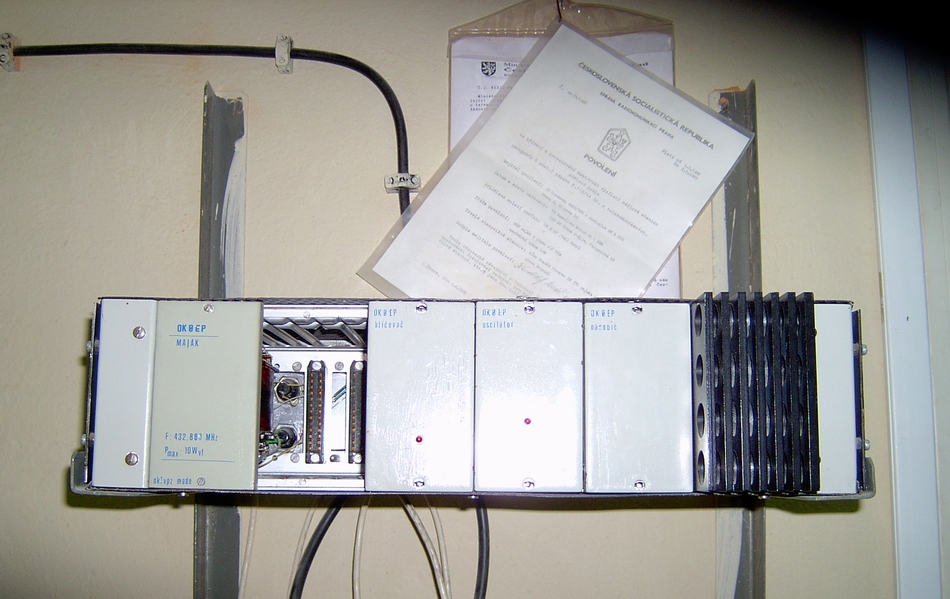

The beacon with removed power supply unit. Original license copy in background.

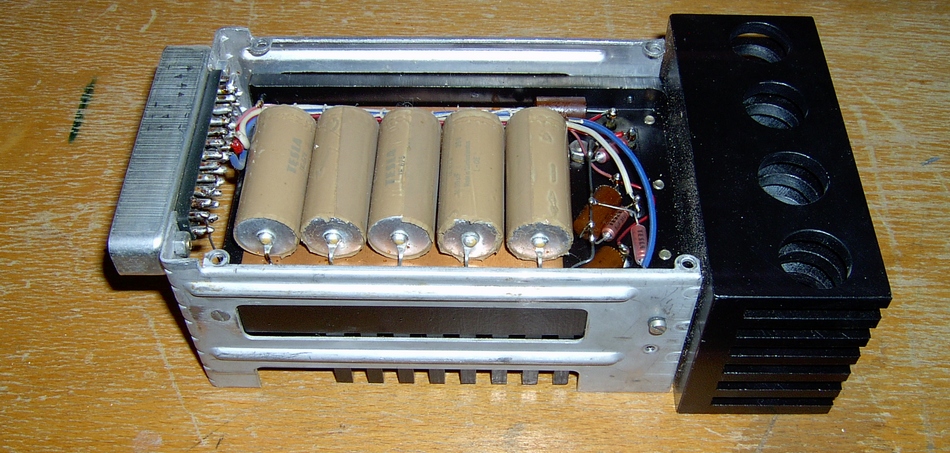

Power supply unit with 30 years old electrolytic capacitors by Czech Tesla Co.


SPOTS on the web DX-CLUSTER since 1998
============================================================================
DH3NAN   432884.0 OK0EP/B     jo80>jo50 529 norm nil        1646 31 Dec 1998
==

=============================================================================
9A2SB   432886.1  OK0EP/B      jo80ob:tr:jn95gm 599 AN      1322 20210222
DK2EA   432885.8  OK0EP        JO50UF:TR:JO80OB 569         1412 20210222
SM7GVF  432885.7  OK0EP/B      JO77GA:TR:JO80OB S2 n=0      2004 20210228
OZ1SKY  432886.0  OK0EP        :tr:                         2033 20210228
SM7GVF  432885.7  OK0EP/B      JO77GA:TR:JO80OB S2 building 1659 20210301
OK1TEH  432886.0  OK0EP/B      any spot from G/GM/OZ?       2231 20210301
SP3TLJ  432886.0  OK0EP/B      519 TR in JO82TM             1050 20210302
OZ9FW   432886.0  OK0EP/B      519 in JO65CO                1117 20210302
OE5LJM  432886.0  OK0EP/B      JO80OB(TR)JN77DW 519         0939 20210427
OE5LJM  432886.0  OK0EP/B      JO80OB(TR)JN77BW 519         0629 20210428
OE5LJM  432886.0  OK0EP/B      JO80OB(TR)JN78FA 519         0654 20210429
SP6VGJ  432886.0  OK0EP/B      55                           1220 20210501
OK2WO   432886.0  OK0EP/B      55 stable in Brno            1234 20210501
OM3PV   432885    OK0EP        beacon   539                 1627 20210522
OE5LJM  432886    OK0EP/B      JO80OB(TR)JN77AV 519         1248 20210607
OE5LJM  432886    OK0EP/B      JO80OB(TR)JN77BW 519         0657 20210706
OK1TEH  432885.5  OK0EP/B      599+ any DL/PA/G reports?    1957 20210901
PA8R    432885.5  OK0EP/P      nil here                     2002 20210901
OZ1SKY  432886    OK0EP/B      <tr>                         0714 20210904
9A2SB   432886.1  OK0EP/B      jo80ob<tr>jn95gm 599 AN      1620 20210926
SM7GVF  432885.7  OK0EP/B      JO77GA<TR>JO80OB S3 n=0      1816 20210926
OE3JPC  432885    OK0EP/B      579 JO80-JN87 norm nil       0710 20210929
OK1SC   432885    OK0EP/B      JO70OB<TR>JO80OB 599 strong  0920 20211002
OK1TEH  432886    OK0EP/B      599+ any SM/OZ/DL reports?   1917 20211024
DK1KW   432886    OK0EP        JN58RE<ACS>JO80EB short AS   1709 20211109
DL1VPL  432886    OK0EP/B      JO61UA<TR>JO80OB 589 AN      1730 20211109
DK1KW   432886    OK0EP        JN58RE<ACS>JO80OB AS trace   1613 20211110
OE5LJM  432886    OK0EP/B      JO80OB(TR)JN78DA 539         1549 20211111
OK1TEH  432886    OK0EP/B      any F/G report? 1,5km asl    2152 20211119
OK1TEH  432886    OK0EP/B      599 norm jo70-jo80           2218 20211205
=============================================================================
OE5LJM    432886.0   OK0EP/B     JN78DA(TR)JO80OB 529        2008 01.01.2022
OK1TEH    432886.0   OK0EP/B     599+ any DL/PA/G reports?   2111 13.01.2022
SQ9NRF    432886.0   OK0EP       Beacon                      1650 17.01.2022
OK1IN     432886.0   OK0EP       JO60XE:TR:JO80OB BCN 599    0744 14.02.2022
SP2DDV    432886.0   OK0EP/B     JO80OB:TR:JO83VE 539        1241 17.03.2022
OE5LJM    432886.0   OK0EP/B     JN77AV(TR)JO80OB 529        0835 23.03.2022
DL1VPL    432886.0   OK0EP/B     JO61UA:TR:JO80OB 599+       0846 27.03.2022
OE3JPC    432885.0   OK0EP/B     JO80-JN87 579 eternal OK0EP 0552 24.07.2022
9A2SB     432886.0   OK0EP/B     JO80OB 599A in JN95GM       1906 05.10.2022
OK1TEH    432886.0   OK0EP/B     599+ any DX spots?          1916 18.10.2022
OE5LJM    432885.8   OK0EP/B     JN77AV(TR)JO80OB 599        1421 20.10.2022
OE5LJM    432885.9   OK0EP/B     JN77DW(TR)JO80OB 599        1447 21.10.2022
OE5LJM    432886.0   OK0EP/B     JN77CW(TR)JO80OB 519        1044 24.10.2022
DL1VPL    432486.0   OK0EP/B     JO61UA:TR:JO80OB 559 NORM   1530 28.10.2022
OK1TEH    432885.6   OK0EP/B     599+20dB fb 196km           2320 30.10.2022
9A2SB     432886.0   OK0EP/B     jo80ob 599+ AN              1721 31.10.2022
HA1FV     432886.0   OK0EP/B     JN87JJ:TR:JO80OB 599 N=0    0734 01.11.2022
OE5LJM    432886.0   OK0EP/B     JN77BW(TR)JO80OB 529        1532 08.11.2022
DL1VPL    432885.5   OK0EP/B     JO61UA:TR:JO80OB 569        1622 08.11.2022
DG0VV     432885.0   OK0EP/B     429 jo62rm-jo80ob           2232 12.11.2022
OZ1SKY    432886.0   OK0EP       :tropo:                     0630 13.11.2022

==============================================================================
DL1VPL     432886.0   OK0EP/B     JO61UA:TR:JO80OB 429        1514 2023-Jan-19
S51ZO      432468.0   OK0EP/B     JO70UP 459                  2340 2023-Jan-31
DL7YS      432886.0   OK0EP/B     539 in JO62NM               1613 2023-Feb-13
9A2SB      432886.0   OK0EP/B     jo80ob:tr:jn95gm 579AN      1655 2023-Feb-13
OE5LJM     432886.0   OK0EP/B     JN78DA(TR)JO80OB 519        0707 2023-Feb-14
DL1VPL     432886.0   OK0EP/B     JO61UA:TR:JO80OB 599+       0812 2023-Feb-14
9A2SB      432886.0   OK0EP/B     jo80ob:tr:jn95gm 599AN      0918 2023-Feb-14
DL1VPL     432885.7   OK0EP/B     JO61UA:TR:JO80OB 429 QSB    0830 2023-Apr-07
OE5LJM     432886.0   OK0EP/B     JN77DW(TR)JO80OB 529        1543 2023-Apr-30
OK1SC      432886.0   OK0EP/B     JO70OB:TR:JO80OB 58/99=N    1507 2023-May-05
OE5LJM     432886.0   OK0EP/B     JN77DX(TR)JO80OB 519        1010 2023-May-21
DL1VPL     432885.6   OK0EP/B     JO61UA:TR:JO80OB 579        0754 2023-May-24
HA1FV      432886.0   OK0EP/B     JN87JJ:TR:JO80OB 549 AN     2000 2023-Jul-15
HA1FV      432886.0   OK0EP/B     JN87JJ:TR:JO80OB 539 AN     0504 2023-Jul-16
SP3TLJ     432885.5   OK0EP/B     519 in JO82TM               0544 2023-Jul-17
HA1FV      432885.0   OK0EP/B     JN87JJ:TR:JO80OB 599 AN     0558 2023-Jul-24
HA1FV      432886.0   OK0EP/B     JN87JJ:TR:JO80OB 559 A=0    0601 2023-Aug-24
SO3Z       432885.0   OK0EP/B     JO82LJ:TR:JO80OB 557        0615 2023-Sep-02
OK1TEH     432886.0   OK0EP/B     any spots from G/PA/SM?     2127 2023-Sep-07
OK1TEH     432886.0   OK0EP/B     599++1505masl any reports?  0554 2023-Sep-08
9A2SB      432886.0   OK0EP/B     jo80ob:tr:jn95gm 579AN      1617 2023-Sep-08
SM0DJW     432886.0   OK0EP/B     JO88WW:TR:JO80OB            1705 2023-Sep-08
9A2SB      432886.1   OK0EP/B     jo80ob:tr:jn95gm 599AN      1607 2023-Sep-09
OK1TEH     432886.0   OK0EP/B     599++ 1505m asl any spots?  0558 2023-Sep-10
9A2SB      432886.1   OK0EP/B     jo80ob:tr:jn95gm 599AN      0743 2023-Sep-10
HA1FV      432886.0   OK0EP/B     JN87JJ:TR:JO80OB 559 AN     0502 2023-Sep-11
SO3Z       432885.5   OK0EP/B     JO82LJ:TR:JO80OB 599        0703 2023-Sep-11
SP2DDV     432886.0   OK0EP/B     JO80OB:TR:JO83VE 350km 529  0943 2023-Sep-27

==========================================================================
DL3LFA   432887.0 OK0EP/B     jo870(>jn67 539...            1109 26 May 1999
DL3LFA   432887.0 OK0EP       549 jo80(>jn67...             1455 29 May 1999
SP3VSC   432885.6 OK0EP       579                           1859 26 Aug 1999
SP3VSC   432885.0 OK0EP/B     559 in jo92df                 1936 02 Sep 1999
LY2WR    432886.0 OK0EP/B     jo80ob>ko24oq 599             2231 03 Sep 1999
DL6NCI   432886.0 OK0EP       bcn jo80ob>jo50vi 559         1126 08 Sep 1999
DL6NCI   432886.0 OK0EP       559 jo80ob>jo50vi norm 419    0711 10 Sep 1999
DL6NCI   432886.0 OK0EP       bcn jo80ob>jo50vi 569         0701 12 Sep 1999
HA1YA    432886.0 OK0EP/B     599 normal 549 (jn87-jo80)    1610 14 Sep 1999
9A2SB-@  432885.0 OK0EP/B     JO80 - JN95GM 559 NORM. NIL   0959 24 Sep 1999
SP3VSC   432885.5 OK0EP       549 in jo92df                 2134 24 Sep 1999
PA3DYS   432887.0 OK0EP       539 jo80ob(>jo21jp            1948 13 Oct 1999
DL3LFA   432887.0 OK0EP/B     549 qsb jn67lu............... 0707 28 Oct 1999
DL6NCI   432886.0 OK0EP       jo80ob>jo50vi 559 (n519)      1659 12 Nov 1999
HA1YA    432885.0 OK0EP/B     599+ my ant unusable-ice      1719 01 Dec 1999
HA1YA    432885.0 OK0EP/B     549 vy weak no prop hr QRT..  1805 05 Dec 1999
============================================================================
DL3LFA   432887.0 OK0EP       559>jn67(>jo80 nr 519max......1237 03 Jan 2000
DL3LFA   432887.0 OK0EP/B     559>jn67(>jo80!!!.............1133 06 Jan 2000
9A2SB    432880.0 OK0EP       jo80-jn95 559 norm nil        0941 09 Jan 2000
OE3BCA   432886.0 OK0EP/B     jo80ob 449                    0841 12 Jun 2000
OE3BCA   432885.0 OK0EP/B     559 jo80ob in jn87cx          0546 26 Aug 2000
SP3VSC   432886.0 OK0EP       599 in jo92df                 0506 05 Sep 2000
9A2SB    432887.0 OK0EP       jo80ob-jn95gm max 599 norm nil1833 09 Sep 2000
SP6MLK   432885.0 OK0EP/B     59+40dB jo80ik/jo80ob norm 59 1705 18 Sep 2000
HA1YA    432885.5 OK0EP/B     559 norm jn87-jo80            1736 18 Sep 2000
SP6MLK   432885.0 OK0EP/B     599+40dB jo80ik/jo80ob        0652 19 Sep 2000
DL7YS    432885.0 OK0EP/B     JO80OC>JO62NM 549 ufb         0655 19 Sep 2000
DL6NCI   432885.0 OK0EP       jo80ob>jo50vi 539             0702 19 Sep 2000
DL7FF    432886.0 OK0EP/B     579 jo80ob 2w erp>jo62tj      2039 23 Sep 2000
DL5LF    432886.0 OK0EP/B     55 jo54af                     2043 23 Sep 2000
DL5LF    432886.0 OK0EP/B     53 jo54af-jo80ob              0751 24 Sep 2000
OM3PV    432886.0 OK0EP       539/569 JO80OB                1539 25 Sep 2000
DL6NCI   432885.0 OK0EP       jo80ob>jo50vi 569             0623 27 Sep 2000
HA1YA    432885.0 OK0EP/B     jo80ob 599 norm 559           1417 27 Sep 2000
9A2SB    432885.0 OK0EP/B     jo80ob--jn95gm 579 norm-nil   1556 27 Sep 2000
DH3NAN   432886.0 OK0EP/B     jo80>jo50 519 normal          1639 30 Sep 2000
DF4UE    432886.2 OK0EP/B     JN80oc->JN48rr 429 580km      1759 30 Sep 2000
DF4UE    432886.2 OK0EP/B     JO80ob->JN48rr 429 580km      1704 01 Oct 2000
DF4UE    432886.2 OK0EP/B     JN80oc->JN48rr 429 580km      1759 01 Oct 2000
DF4UE    432886.3 OK0EP/B     JO80ob->JN48rr 329 580km      1756 02 Oct 2000
DF4UE    432886.3 OK0EP/B     JO80ob->JN48rr 319-549 580km  0740 03 Oct 2000
HA1YA    432885.0 OK0EP/B     559 norm.                     1653 05 Oct 2000
DF4UE    432886.5 OK0EP/B     JO80ob->JN48rr 319-539 580km  1035 07 Oct 2000
OM3PV    432886.0 OK0EP/B     579 JO80OB normal 539         0643 15 Oct 2000
9A2SB    432886.0 OK0EP       jo80ob 579 in jn95gm/norm nil 1515 15 Oct 2000
DF4UE    432886.4 OK0EP/B     JO80ob->JN48rr 319-539 580km  1613 15 Oct 2000
DF4UE    432886.4 OK0EP/B     JO80ob->JN48rr 429-549 580km  1913 18 Oct 2000
DF4UE    432886.4 OK0EP/B     JO80ob->JN48rr 319-539        1855 20 Oct 2000
9A2SB    432886.0 OK0EP       jo80ob--jn95gm 599 vy strong  1540 23 Oct 2000
DF4UE    432886.4 OK0EP/B     JO80ob->JN48rr 319-549 579km  2009 28 Oct 2000
DF4UE    432886.4 OK0EP/B     JO80ob->JN48rr 319-539        1757 01 Nov 2000
DL3LFA   432886.5 OK0EP/B     549 jo80(>jn67 no qsb......   1804 01 Nov 2000
S51ZO    432885.0 OK0EP       jo80ob 559                    1600 15 Nov 2000
SP6MLK   432885.0 OK0EP       599+40dB in JO80              2006 01 Dec 2000
SP6MLK   432855.0 OK0EP/B     599+40dB in JO80              2115 02 Dec 2000
SP6MLK   432885.0 OK0EP/B     599-JO80 az 160deg norm 539   1756 03 Dec 2000
SP6MLK   432885.0 OK0EP/B     599-JO80IK-160deg and OK0EA   1930 05 Dec 2000
DF4UE    432885.8 OK0EP/B     JO80ob->JN48rr 319-539 579km  1052 16 Dec 2000
DF4UE    432885.9 OK0EP/B     JO80ob->JN48rr 319-539 579km  1952 19 Dec 2000
DL3LFA   432886.0 OK0EP/B     jn67(>jo80*599+!.......       1756 21 Dec 2000
DG5CST   432885.0 OK0EP/B     559 jo80                      2108 21 Dec 2000
DF4UE    432886.0 OK0EP/B     JO80ob->JN48rr 329 norm       0815 22 Dec 2000
============================================================================
SP6MLK   432855.0 OK0EP       599+20 in JO80>JO80 qtf 160   1012 07 Jan 2001
SP6MLK   432855.0 OK0EP/B     599+40 in JO80 qtf 160        2055 10 Jan 2001
DL3ZBA   432885.0 OK0EP/B     JO80EB>JO41RF RST 419 - 561 km2358 13 Jan 2001
DL6NAA   432885.0 OK0EP       bcn bcn 59++ in jo50          1729 14 Jan 2001
HA1VQ    432885.0 OK0EP       Baken fm JO80-JN87 449 QSB    1811 15 Jan 2001
DL3LFA   432886.0 OK0EP       jn67(>jo80 gd sig 549 qsb!!!  1003 05 Feb 2001
DF4UE    432886.0 OK0EP/B     JO80ob->JN48rr 319-539 579km  1940 05 Feb 2001
DF4UE    432886.0 OK0EP/B     JO80ob->JN48rr 319-429 579km  1009 10 Feb 2001
SP6MLK   432885.0 OK0EP/B     599+20dB BS JO80>JO80 az 160  1651 11 Feb 2001
DL3LFA   432886.0 OK0EP/B     jn67(>jo80 549!!!             1654 11 Feb 2001
DF4UE    432886.0 OK0EP/B     JO80ob->JN48rr 319-539 579km  1051 17 Feb 2001
DF4UE    432886.0 OK0EP/B     JO80ob->JN48rr 319-529 579km  1131 24 Feb 2001
SP6MLK   432885.0 OK0EP/B     599+40!!! JO80OB>JO80IK az160 1457 24 Feb 2001
DF4UE    432885.7 OK0EP/B     JO80ob->JN48rr 319-539 norm   0840 16 Mar 2001
DF4UE    432885.6 OK0EP/B     JO80ob->JN48rr 319-539 579km  1549 18 Mar 2001
SP6MLK   432884.5 OK0EP/B     599+JO80>JO80 norm 599        1715 18 Mar 2001
DF4UE    432885.6 OK0EP/B     JO80ob->JN48rr 319-539 579km  0830 25 Mar 2001
DL3LFA   432886.0 OK0EP/B     jn67(>jo80.559qsb!!!          1023 25 Mar 2001
DL3LFA   432886.0 OK0EP/B     549 qsb jn67(>jo80!!!         1751 28 Mar 2001
DF4UE    432886.0 OK0EP/B     JO80ob->JN48rr 319-539 579km  1842 26 Apr 2001
HA1YA    432886.0 OK0EP/B     jo80ob 579                    1753 01 May 2001
DL6NAA   432886.0 OK0EP       bcn jo80ob 599 in jo50vf      0617 22 Jul 2001
OK2BFH   432887.0 OK0EP/B     599                           0613 11 Aug 2001
DF4UE    432885.9 OK0EP/B     JO80ob->JN48rr 539qsb  580km  1755 15 Aug 2001
SP6MLK   432885.0 OK0EP/B     599+++ JO80OC/JO80IK norm 599 0604 18 Aug 2001
DL3LFA   432886.0 OK0EP/B     jn67-jo80 norm. 529!!!        1138 17 Sep 2001
S51ZO    432885.0 OK0EP       jo80ob 569                    1517 22 Sep 2001
SP6MLK   432885.1 OK0EP/B     599+40dB jo80ob/jo80ik        1558 22 Sep 2001
SP6MLK   432885.0 OK0EP/B     599 jo80ob/jo80ik             0919 23 Sep 2001
SP6MLK   432885.8 OK0EP/B     599 JO80/JO80JG               2317 05 Oct 2001
SP6MLK   432885.7 OK0EP/B     579 jo80/jo80                 0920 06 Oct 2001
HA1YA    432885.0 OK0EP/B     599fb jo80ob                  1337 06 Oct 2001
DL3LFA   432886.0 OK0EP/B     jn67-jo80 559!!!              0723 12 Oct 2001
SP6MLK   432885.0 OK0EP/B     599+40dB jo80/jo80            1851 12 Oct 2001
S51ZO    432886.0 OK0EP       jo80ob 599plus norm. 559      1933 12 Oct 2001
DJ4TC    432886.0 OK0EP/B     559 JO80->JO63 normal nil     1636 13 Oct 2001
DL6NCI   432886.0 OK0EP       jo80ob>jo50vi 599             1736 13 Oct 2001
SP6MLK   432886.0 OK0EP/B     599+40dB jo80ob/jo80ik        1819 13 Oct 2001
SP6MLK   432886.0 OK0EP/B     599+40dB jo80ob/jo80ik        1515 15 Oct 2001
DL3YEE   432855.0 OK0EP/B     519 in jo42ge                 2207 17 Oct 2001
DL3LFA   432886.0 OK0EP/B     jn67-j080 559!!!              1220 18 Oct 2001
SP6MLK   432885.8 OK0EP/B     599+20dB jo80ob/jo80ik        0712 19 Oct 2001
S51ZO    432886.0 OK0EP       jo80ob 599                    0116 20 Oct 2001
DK5HX    432885.0 OK0EP/B     569 in jo43                   1259 20 Oct 2001
DL3LFA   432886.2 OK0EP/B     jn67-jo80 599!!!              1900 20 Oct 2001
DL5LF    432886.0 OK0EP/B     56 jo54af (nil)               1012 03 Nov 2001
SP6MLK   432885.8 OK0EP/B     599+30dB jo80/jo80            1115 03 Nov 2001
DK5HX    432885.0 OK0EP/B     529 into jo43                 1627 03 Nov 2001
S51ZO    432885.0 OK0EP       jo80ob 589                    1349 02 Dec 2001
 ============================================================================
S51ZO    432885.0 OK0EP       jo80ob 569 OK1                 440 17 Feb 2002
S51ZO    432885.0 OK0EP       jo80oc 569                    2200 23 Feb 2002
S51ZO    432885.0 OK0EP       jo80ob 579                    2009 02 May 2002
S51ZO    432885.0 OK0EP       jo80ob 589                    2134 14 Jun 2002
S50C     432886.0 OK0EP       jo80ob 539 normal 519         2107 15 Jun 2002
S51ZO    432885.0 OK0EP       jo80ob 579                    1531 25 Jun 2002
SP3VSC   432885.0 OK0EP       559      OK                   0537 26 Jun 2002
S51ZO    432885.0 OK0EP       jo80ob 579                    1559 30 Jun 2002
S51ZO    432885.0 OK0EP       jo80ob 579                    1830 02 Jul 2002
S51ZO    432885.0 OK0EP       jo80ob 579                    2347 10 Jul 2002
S51ZO    432885.0 OK0EP       jo80ob 589                    0403 11 Jul 2002
DL3LFA   432886.0 OK0EP/B     jn67(>jo80 569  gd sig !!!    0956 12 Jul 2002
HA1YA    432885.0 OK0EP/B     jo80ob 579 in jn87            1758 15 Jul 2002
SP3VSC   432886.0 OK0EP       569 248km                     1856 21 Jul 2002
S51ZO    432885.0 OK0EP       jo80ob 579                    1648 27 Jul 2002
SP2MKO   432886.6 OK0EP/B     jo70ob 559 in jo93            0151 08 Aug 2002
SP2MKO   432886.7 OK0EP/B     jo70ob 539 in jo93            0442 08 Aug 2002
OK1TEH   432886.0 OK0EP/B     jo80ob 599 norm in jo70fd     0944 08 Aug 2002
SP3VSC   432886.0 OK0EP       599                           0700 09 Aug 2002
DJ5RE    432886.4 OK0EP/B     JO80. 529 in JN59 = above norm1654 13 Sep 2002
SP3VSC   432885.0 OK0EP       519 normal not p.amp OK       1744 18 Sep 2002
DF4UE    432886.0 OK0EP/B     JO80ob->JN48rr 319 norm       1735 22 Sep 2002
OK1TEH   432886.0 OK0EP/B     www.qsl.net/ok2kkw/ok0ep.htmOK1814 22 Sep 2002
SP3VSC   432886.0 OK0EP       529                   OK      1039 30 Sep 2002
DL3LFA   432886.0 OK0EP/B     jn67(>jo80 gd sig 569.qsb!!!  1202 30 Sep 2002
DL3LFA   432886.0 OK0EP/B     jn67(>jo80 599 norm nix!!!    0806 02 Oct 2002
SP3VSC   432886.0 OK0EP       539                           0908 02 Oct 2002
DF5NK    432886.0 OK0EP/B     JO80OB>JN59 53 nor NIL        1927 02 Oct 2002
S51ZO    432885.0 OK0EP       jo80ob 589                    2234 04 Oct 2002
SP6MLK   432886.1 OK0EP       599+20dB jo80oc/jo80jg        1130 05 Oct 2002
S51ZO    432885.0 OK0EP       jo80ob 589                    0716 23 Oct 2002
SP3VSC   432886.0 OK0EP       559 in jo92df                 1958 04 Nov 2002
DL6NCI   432886.0 OK0EP       jo80ob>jo50vi 559 (norm OK    1429 05 Nov 2002
DL6NAA   432885.0 OK0EP       bcn jo80ob 59+9 in jo50vf OK  1735 05 Nov 2002
SP3VSC   432886.0 OK0EP       539 jo80 jo92                 1301 14 Nov 2002
DH3NAN   432885.7 OK0EP/B     jo80>j050 569 nrm 519 any sked0912 24 Nov 2002
SP3VSC   432886.0 OK0EP       569 jo80 jo92                 1212 24 Nov 2002
SP3VSC   432886.0 OK0EP       599++++ jo80 jo92 nice tropoOK1408 24 Nov 2002
DL6NCI   432886.0 OK0EP       jo80ob>jo50vi 599 (n 529)     1736 24 Nov 2002
DH3NAN   432885.7 OK0EP/B     jo80>jo50 529 normal          1737 23 Dec 2002
============================================================================
DF5NK    432886.0 OK0EP/B     519 JO80>JN59 norm nil        2155 10 Feb 2003
S51ZO    432886.0 OK0EP       jo80ob 559                    1700 22 Feb 2003
S51ZO    432885.0 OK0EP       jo80ob 589 OK                 1301 23 Feb 2003
SP3JBI   432885.0 OK0EP/B     55 normal 52                  2138 24 Feb 2003
DF5NK    432886.0 OK0EP/B     JO80>JN59 529QSB nor=nil      1005 28 Feb 2003
DF5NK    432886.0 OK0EP/B     JO80OB>JN59 weak.norm nil     2055 05 Mar 2003
S51ZO    432886.0 OK0EP       jo80ob 559                    2040 15 Mar 2003
DF5NK    432886.0 OK0EP/B     JO80>JN59 529 stable nor=nil  0823 20 Mar 2003
DF5NK    432886.0 OK0EP/B     JO80>JN59 529QSB norm=nil     1441 05 Apr 2003
DL6NCI   432886.0 OK0EP       jo80ob>jo50vi 519             0705 17 Apr 2003
S51ZO    432885.0 OK0EP       jo80oc 579                    1031 02 May 2003
S50C     432885.0 OK0EP       529 qsb jo80ob jn76jg         2044 24 May 2003
DF4UE-@  432885.0 OK0EP/B     JO80oc->JN48rr 319 432886.210 1104 25 May 2003
DJ5BV    432885.0 OK0EP       JO80 > JO30 S=5  735 km !     0533 10 Jun 2003
DL3LFA   432886.4 OK0EP/B     jn67(>jo80 529 gd sig!!!......0605 03 Jul 2003
DL3LFA   432886.0 OK0EP/B     jn67(>jo80 549 gd sig!!!******0710 14 Jul 2003
DL6NAA   432886.0 OK0EP       bcn jo80oh 599 in jo50vf OK   1209 24 Jul 2003
S50C     432885.0 OK0EP       jo80 to jn76jg 539            0101 13 Aug 2003
OK1TEH-@ 432886.0 OK0EP/B     599 norm jo70fd - jo80ob      0801 13 Sep 2003
DF5NK    432886.0 OK0EP/B     jo80ob>jn59 549 steady norm=0 0726 16 Sep 2003
DF5NK    432886.0 OK0EP/B     539 solid in JN59 norm=0      0814 17 Sep 2003
DL3LFA   432887.0 OK0EP/B     jn67(>jo80-->559!!!           0831 18 Sep 2003
OK1TEH-@ 432886.0 OK0EP/B     599=20dB norm 599 any SP?     1939 18 Sep 2003
OK2BFH   432887.0 OK0EP/B     jo80ob 599 normal dist abt100 0519 20 Sep 2003
OK2BFH   432966.0 OK0EP/B     jn78du 579 jn99fn             0454 21 Sep 2003
OE3JPC   432887.0 OK0EP       jo80-jn87 599+++ vy strong 2da1531 09 Nov 2003
OK1TEH-@ 432886.0 OK0EP/B     599= norm 599 197km qtf 92    1935 25 Nov 2003
DL6NCI   432886.0 OK0EP       jo80ob>jo50vi 599             1729 02 Dec 2003
G3LQR    432886.0 OK0EP/P     jo02-jo80 hrd 429             1800 04 Dec 2003
DL6NCR   432886.0 OK0EP       jo80ob>jo50vi 579             1714 08 Dec 2003
 ============================================================================
S51RM    432886.0 OK0EP/B     439 MAX JN75HD                1341 15 May 2004
S51RM    432886.8 OK0EP/B     439 in JN76hd QSB             1402 24 May 2004
OK1TEH   432886.0 OK0EP/B     599 norm jo70 - jo80 198km    1231 27 Jun 2004
SP6VGJ   432886.0 OK0EP/B     599                           1439 01 Jul 2004
SP6VGJ   432886.0 OK0EP       579 normal                    1323 10 Aug 2004
SQ3CPT   432886.0 OK0EP/B     jo80ob>jo81sx 449             1928 14 Aug 2004
SQ3CPT   432886.0 OK0EP/B     jo80ob>jo81sx 449.            0724 19 Aug 2004
SQ3CPT   432886.0 OK0EP/B     jo80ob>jo81sx 559             0913 21 Aug 2004
SQ3CPT   432886.0 OK0EP/B     jo80ob>jo81sx 559             0701 24 Aug 2004
DL3LFA   432886.0 OK0EP/B     jo80==>jn67 569!!!fb          1720 05 Sep 2004
DL3LFA   432886.0 OK0EP/B     jo80==>jn67 529 no norm pwr!!!0759 14 Sep 2004
OK1TEH   432886.0 OK0EP/B     jo80. any reports fm west?    0933 17 Sep 2004
DF5NK    432886.0 OK0EP/B     jo80ob->jn59 549  an          2117 17 Sep 2004
 DL6NCI   432886.0 OK0EP       jo80ob>jo50vi 559             1612 18 Sep 2004
S51ZO    432885.0 OK0EP       jo80oc 599     OK             1824 26 Sep 2004
DL3LFA   432886.0 OK0EP       jo80/jn67 539 norm            1528 05 Oct 2004
DL3LFA   432887.0 OK0EP/B     jo80===>jn67 549              1615 13 Oct 2004
DF5NK    432886.0 OK0EP/B     jo80ob->jn59 539 norm=0       0753 29 Oct 2004
HG1W     432885.0 OK0EP/B     559 Normal                    1810 01 Dec 2004
DJ5BV    432886.0 OK0EP       JO80 > JO30KI  539            1935 07 Dec 2004
DJ5BV    432886.9 OK0EP       JO80 > JO30KI 539             1412 08 Dec 2004
9A2SB    432886.0 OK0EP       559/ norm NIL                 1500 09 Dec 2004
HA1YA    432885.0 OK0EP       59++                          1817 11 Dec 2004
S51ZO    432885.0 OK0EP       jo80oc 599 FB normal 559      1342 12 Dec 2004
S51ZO    432885.0 OK0EP       JO80OC 599+++                 1720 12 Dec 2004
9A2SB    432886.0 OK0EP/B     jo80ib 559                    1034 19 Dec 2004
============================================================================
============================================================================
      9A2SB   432886.1  OK0EP/B      jo80ob:tr:jn95gm 599 AN      1322 20210222
      DK2EA   432885.8  OK0EP        JO50UF:TR:JO80OB 569         1412 20210222
      SM7GVF  432885.7  OK0EP/B      JO77GA:TR:JO80OB S2 n=0      2004 20210228
      OZ1SKY  432886.0  OK0EP        :tr:                         2033 20210228
      SM7GVF  432885.7  OK0EP/B      JO77GA:TR:JO80OB S2 building 1659 20210301
      OK1TEH  432886.0  OK0EP/B      any spot from G/GM/OZ?       2231 20210301
      SP3TLJ  432886.0  OK0EP/B      519 TR in JO82TM             1050 20210302
      OZ9FW   432886.0  OK0EP/B      519 in JO65CO                1117 20210302
      OE5LJM  432886.0  OK0EP/B      JO80OB(TR)JN77DW 519         0939 20210427
      OE5LJM  432886.0  OK0EP/B      JO80OB(TR)JN77BW 519         0629 20210428
      OE5LJM  432886.0  OK0EP/B      JO80OB(TR)JN78FA 519         0654 20210429
      SP6VGJ  432886.0  OK0EP/B      55                           1220 20210501
      OK2WO   432886.0  OK0EP/B      55 stable in Brno            1234 20210501
      OM3PV   432885    OK0EP        beacon   539                 1627 20210522
      OE5LJM  432886    OK0EP/B      JO80OB(TR)JN77AV 519         1248 20210607
      OE5LJM  432886    OK0EP/B      JO80OB(TR)JN77BW 519         0657 20210706
      OK1TEH  432885.5  OK0EP/B      599+ any DL/PA/G reports?    1957 20210901
      PA8R    432885.5  OK0EP/P      nil here                     2002 20210901
      OZ1SKY  432886    OK0EP/B      <tr>                         0714 20210904
      9A2SB   432886.1  OK0EP/B      jo80ob<tr>jn95gm 599 AN      1620 20210926
      SM7GVF  432885.7  OK0EP/B      JO77GA<TR>JO80OB S3 n=0      1816 20210926
      OE3JPC  432885    OK0EP/B      579 JO80-JN87 norm nil       0710 20210929
      OK1SC   432885    OK0EP/B      JO70OB<TR>JO80OB 599 strong  0920 20211002
      OK1TEH  432886    OK0EP/B      599+ any SM/OZ/DL reports?   1917 20211024
      DK1KW   432886    OK0EP        JN58RE<ACS>JO80EB short AS   1709 20211109
      DL1VPL  432886    OK0EP/B      JO61UA<TR>JO80OB 589 AN      1730 20211109
      DK1KW   432886    OK0EP        JN58RE<ACS>JO80OB AS trace   1613 20211110
      OE5LJM  432886    OK0EP/B      JO80OB(TR)JN78DA 539         1549 20211111
      OK1TEH  432886    OK0EP/B      any F/G report? 1,5km asl    2152 20211119
      OK1TEH  432886    OK0EP/B      599 norm jo70-jo80           2218 20211205
      ============================================================================

      ============================================================================
      OE5LJM   432886.0   OK0EP/B     JN78DA(TR)JO80OB 529       2008 2022-Jan-01
      OK1TEH   432886.0   OK0EP/B     599+ any DL/PA/G reports?  2111 2022-Jan-13
      SQ9NRF   432886.0   OK0EP       Beacon                     1650 2022-Jan-27
      OK1IN    432886.0   OK0EP       JO60XE:TR:JO80OB BCN 599   0744 2022-Feb-14
      SP2DDV   432886.0   OK0EP/B     JO80OB:TR:JO83VE 539       1241 2022-Mar-17
      OE5LJM   432886.0   OK0EP/B     JN77AV(TR)JO80OB 529       0835 2022-Mar-23
      DL1VPL   432886.0   OK0EP/B     JO61UA:TR:JO80OB 599+ AN   0846 2022-Mar-27
      OE3JPC   432885.0   OK0EP/B     JO80-JN87 579 eternalOK0EP 0552 2022-Jul-24
      OK1TEH   432886.0   OK0EP/B     any reports? 1,5km asl     1816 2022-Oct-04
      9A2SB    432886.0   OK0EP/B     JO80OB 599AN in JN95GM     1906 2022-Oct-05
      OK1TEH   432886.0   OK0EP/B     599+1505m asl any reports? 0612 2022-Oct-20
      OE5LJM   432885.8   OK0EP/B     JN77AV(TR)JO80OB 599       1421 2022-Oct-20
      OE5LJM   432885.9   OK0EP/B     JN77DW(TR)JO80OB 599       1447 2022-Oct-21
      OE5LJM   432886.0   OK0EP/B     JN77CW(TR)JO80OB 519       1044 2022-Oct-24
      DL1VPL   432486.0   OK0EP/B     JO61UA:TR:JO80OB 559 NORM  1530 2022-Oct-28
      OK1TEH   432885.5   OK0EP/B     599+20dB fb 196km          2320 2022-Oct-30
      9A2SB    432886.0   OK0EP/B     jo80ob 599+ AN             1721 2022-Oct-31
      HA1FV    432886.0   OK0EP/B     JN87JJ:TR:JO80OB 599 N=0   0734 2022-Nov-01
      OE5LJM   432886.0   OK0EP/B     JN77BW(TR)JO80OB 529       1532 2022-Nov-08
      DL1VPL   432885.5   OK0EP/B     JO61UA:TR:JO80OB 569       1622 2022-Nov-08
      OK1TEH   432886.0   OK0EP/B     any reports? 1505m ASL     1648 2022-Nov-11
      DG0VV    432885.0   OK0EP/B     429 jo62rm-jo80ob          2232 2022-Nov-12
      OZ1SKY   432886.0   OK0EP       :tr:                       0630 2022-Nov-13
      ============================================================================

    ==============================================================================
   DL1VPL     432886.0   OK0EP/B     JO61UA:TR:JO80OB 429        1514 2023-Jan-19
   S51ZO      432468.0   OK0EP/B     JO70UP 459                  2340 2023-Jan-31
   DL7YS      432886.0   OK0EP/B     539 in JO62NM               1613 2023-Feb-13
   9A2SB      432886.0   OK0EP/B     jo80ob:tr:jn95gm 579AN      1655 2023-Feb-13
   OE5LJM     432886.0   OK0EP/B     JN78DA(TR)JO80OB 519        0707 2023-Feb-14
   DL1VPL     432886.0   OK0EP/B     JO61UA:TR:JO80OB 599+       0812 2023-Feb-14
   9A2SB      432886.0   OK0EP/B     jo80ob:tr:jn95gm 599AN      0918 2023-Feb-14
   DL1VPL     432885.7   OK0EP/B     JO61UA:TR:JO80OB 429 QSB    0830 2023-Apr-07
   OE5LJM     432886.0   OK0EP/B     JN77DW(TR)JO80OB 529        1543 2023-Apr-30
   OK1SC      432886.0   OK0EP/B     JO70OB:TR:JO80OB 58/99=N    1507 2023-May-05
   OE5LJM     432886.0   OK0EP/B     JN77DX(TR)JO80OB 519        1010 2023-May-21
   DL1VPL     432885.6   OK0EP/B     JO61UA:TR:JO80OB 579        0754 2023-May-24
   HA1FV      432886.0   OK0EP/B     JN87JJ:TR:JO80OB 549 AN     2000 2023-Jul-15
   HA1FV      432886.0   OK0EP/B     JN87JJ:TR:JO80OB 539 AN     0504 2023-Jul-16
   SP3TLJ     432885.5   OK0EP/B     519 in JO82TM               0544 2023-Jul-17
   HA1FV      432885.0   OK0EP/B     JN87JJ:TR:JO80OB 599 AN     0558 2023-Jul-24
   HA1FV      432886.0   OK0EP/B     JN87JJ:TR:JO80OB 559 A=0    0601 2023-Aug-24
   SO3Z       432885.0   OK0EP/B     JO82LJ:TR:JO80OB 557        0615 2023-Sep-02
   OK1TEH     432886.0   OK0EP/B     any spots from G/PA/SM?     2127 2023-Sep-07
   OK1TEH     432886.0   OK0EP/B     599++1505masl any reports?  0554 2023-Sep-08
   9A2SB      432886.0   OK0EP/B     jo80ob:tr:jn95gm 579AN      1617 2023-Sep-08
   SM0DJW     432886.0   OK0EP/B     JO88WW:TR:JO80OB            1705 2023-Sep-08
   9A2SB      432886.1   OK0EP/B     jo80ob:tr:jn95gm 599AN      1607 2023-Sep-09
   OK1TEH     432886.0   OK0EP/B     599++ 1505m asl any spots?  0558 2023-Sep-10
   9A2SB      432886.1   OK0EP/B     jo80ob:tr:jn95gm 599AN      0743 2023-Sep-10
   HA1FV      432886.0   OK0EP/B     JN87JJ:TR:JO80OB 559 AN     0502 2023-Sep-11
   SO3Z       432885.5   OK0EP/B     JO82LJ:TR:JO80OB 599        0703 2023-Sep-11
   SP2DDV     432886.0   OK0EP/B     JO80OB:TR:JO83VE 350km 529  0943 2023-Sep-27
    ==============================================================================

     ==============================================================================
   DL1VPL     432886.0   OK0EP/B     JO61UA:TR:JO80OB 589 AN     0939z 2024-Jan-30
   SO3Z       432886.0   OK0EP/B     JO82LJ:TR:JO80OB 559        2235z 2024-Jan-31
   DL1VPL     432886.0   OK0EP/B     JO61UA:TR:JO80OB 579        0913z 2024-Mar-20
   OE3JPC     432886.0   OK0EP       JO80-JN87 579 the ethernal  1859z 2024-Jul-20
   OE5LJM     432886.0   OK0EP/B     JN77DW(TR)JO80OB 529        1818z 2024-Jul-26
   S51ZO      432886.0   OK0EP/B     JN86dr/JO80OB 589           0002z 2024-Aug-12
   S51ZO      432886.0   OK0EP/B     jo80ob 589                  1418z 2024-Aug-13
   S51ZO      432886.0   OK0EP/B     JO80ob 589 qsb              2142z 2024-Aug-20
   SP2DDV     432886.0   OK0EP/B     JO80OB:tr:JO83VE 450km 519q 0825z 2024-Aug-26
   OE5LJM     432886.0   OK0EP/B     JN77BW(TR)JO80OB 529        0808z 2024-Sep-18
   SM6CEN     432886.0   OK0EP/B     JO67AJ(TR)JO80OB 529        0847z 2024-Sep-18
   SM6VTZ     432886.0   OK0EP/B     JO58UJ:TR:JO80OB 519 n=0    0850z 2024-Sep-18
   OE5LJM     432886.0   OK0EP/B     JN77DX(TR)JO80OB 519        1740z 2024-Sep-22
   HA1FV      432886.0   OK0EP/B     JN87JJ:TR:JO80OB 559 N=0    0727z 2024-Oct-01
   9A2SB      432886.0   OK0EP/B     jo80ob:tr:jn95gm 579AN      1854z 2024-Oct-16
   OE5LJM     432886.0   OK0EP/B     JN78DA(TR)JO80OB 519        1732z 2024-Oct-21
   HA1FV      432886.0   OK0EP/B     JN87JJ:TR:JO80OB 529        0516z 2024-Oct-22
   OK1TEH     432886.0   OK0EP/B     599+1505m asl, reports??    1911z 2024-Oct-31
   DL4EAU     432885.6   OK0EP/B     JO41XL(TR)JO80OB +5dB/N     1643z 2024-Nov-03
   OE5LJM     432886.0   OK0EP/B     JN78DA(TR)JO80OB 559        2005z 2024-Nov-03
   SM6VTZ     432886.0   OK0EP/B     JO58UJ:TR:JO80OB 539 n=0    1027z 2024-Nov-07
   SM6VTZ     432886.0   OK0EP/B     JO58UJ:TR:JO80OB 579 n=0    1252z 2024-Nov-07
   SM6VTZ     432886.0   OK0EP/B     JO58UJ:TR:JO80OB 529 n=0    1939z 2024-Nov-07
   S51ZO      432886.0   OK0EP/B     Jo80OB 599                  2011z 2024-Nov-07
   SP2HMR     432886.0   OK0EP/B     JO94DE:TR:JO80OB            0929z 2024-Nov-09
   SM6VTZ     432886.0   OK0EP/B     JO58UJ:TR:JO80OB 529 n=0    1014z 2024-Nov-09
   SM6VTZ     432886.0   OK0EP/B     JO58UJ:TR:JO80OB 529 n=0    1411z 2024-Nov-09
   SM6VTZ     432886.0   OK0EP/B     JO58UJ:TR:JO80OB 529 n=0    2037z 2024-Nov-09

Please leave your short message about reception of OK0EP beacon signal on the DX-Cluster.
Usege of the ON4KST chat is probably the best way at the moment. Click "Menu" and select "Web/Clx DX-spot",
or use a F5LEN DX cluster Gateway http://cluster.f5len.org/index.php?what=432 and click send a spot...
