Combiners and splitters designed by use of the Smith chart

Combiners and splitters designed by use of the Smith chart.

Software of Smith diagram for matching circuits here and here..

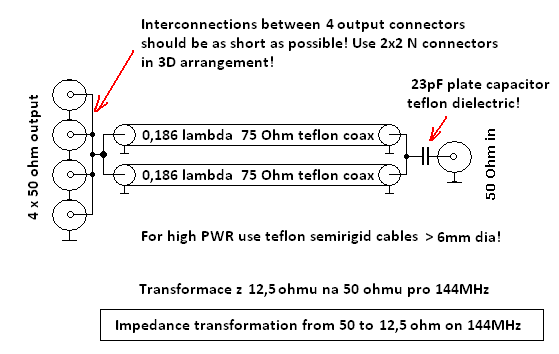

Balanced splitter for 4 Yagis in 2m band here

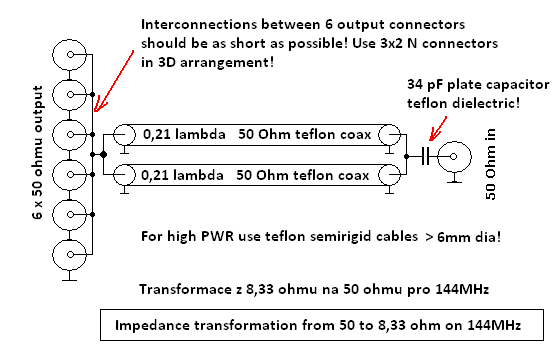

Balanced splitter for 6 Yagis in 2m band here

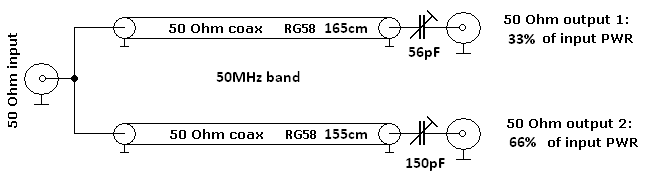

Unbalanced splitter for two 6m PAs here

Unbalanced spliter for two 2m PAs here

Unbalanced splitter for three 2m PAs here

Input matching for two GS35b tubes PA for 2m here
