Srovnání výsledku stanic OK1KIM a OK2KKW v pásmu 432 MHz v UHF Contestu 2001
Comparison between OK1KIM and OK2KKW 432 MHz claimed results in UHF Contest 2001
pripravil / prepared by: S53MM
Contest : IARU UHF
Date : 06./07.10.2001
Call : OK1KIM Call : OK2KKW
UL : JO60RN UL : JO60JJ
Frequency : 432 MHz Frequency : 432 MHz
Category : Multi Category : Multi
Location : Lesna,Krusne hory Location : Spaleniste,Krusne hory
-------------------------------------- --------------------------------------
QSO's : 464 QSO's : 427
Valid QSO's : 464 Valid QSO's : 426
Sum of dist. : 143208 km Sum of dist. : 130865 km
QRB/QSO : 309 km/QSO QRB/QSO : 307 km/QSO
ODX : YU1GT in KN04LP 865 km ODX : YU1EV in KN04CN 855 km
-------------------------------------- --------------------------------------
Ant : 4x38 el M square Ant : single K1FO 33 el.Yagi
PWR : 750 W PWR : 500 W
-------------------------------------- ---------------------------------------
QSOs/QRB: QSOs/DXCC: QSOs/QRB: QSOs/DXCC:
< 100 km : 62 S5 13 < 100 km : 48 S5 10
100 - 200 km : 86 I 1 100 - 200 km : 87 I 7
200 - 300 km : 81 OK 97 200 - 300 km : 86 OK 81
300 - 400 km : 86 9A 8 300 - 400 km : 80 9A 9
400 - 500 km : 81 HG 18 400 - 500 km : 60 HG 16
500 - 600 km : 44 OM 18 500 - 600 km : 38 OM 18
600 - 700 km : 18 OE 17 600 - 700 km : 20 OE 12
700 - 800 km : 3 DL 197 700 - 800 km : 3 DL 233
> 800 km : 3 SP 18 > 800 km : 4 SP 10
YU 3 YU 2
F 1 HB 1
G 1 F 2
ON 7 G 2
OZ 3 ON 5
PA 18 OZ 4
SM 1 PA 10
SM 1
Top ten per QRB: Top ten per QRB: YU1GT KN04 865 km YU1EV KN04 855 YU1EV KN04 838 YT1S JN94 820 YT1S JN94 833 M1CRO/p JO01 819 I4LCK/4 JN54 732 G8P JO01 807 ON1DO JO11 717 IK1YWB/6 JN63 733 PE1EWR JO11 701 I4LCK/4 JN54 705 ON1BV JO10 699 IK1XPD JN35 705 PE1PTQ JO11 684 9A7D JN95 691 9A7D JN95 679 9A2SB JN95 691 PI4ZLD JO11 679 I2FHW JN44 681
Worked UL fields - 69 (OK1KIM)
JO45 JO55 JO65
JO44 JO54
JO33 JO43 JO53 JO63 JO73 JO83
JO22 JO32 JO42 JO52 JO62 JO72 JO82 JO92
JO11 JO21 JO31 JO41 JO51 JO61 JO71 JO81
JO10 JO20 JO30 JO40 JO50<JO60>JO70 JO80 JO90
JN29 JN39 JN49 JN59 JN69 JN79 JN89 JN99 KN09
JN38 JN48 JN58 JN68 JN78 JN88 JN98 KN08
JN47 JN57 JN67 JN77 JN87 JN97 KN07
JN76 JN86 JN96
JN75 JN85 JN95
JN54 JN94 KN04
Worked UL fields - 71 (OK2KKW)
JO45 JO55 JO65
JO44 JO54
JO33 JO43 JO53 JO63 JO73
JO22 JO32 JO42 JO52 JO62 JO72
JO01 JO11 JO21 JO31 JO41 JO51 JO61 JO71
JO10 JO20 JO30 JO40 JO50<JO60>JO70 JO80 JO90
JN29 JN39 JN49 JN59 JN69 JN79 JN89 JN99 KN09
JN28 JN48 JN58 JN68 JN78 JN88 JN98 KN08
JN37 JN47 JN57 JN67 JN77 JN87 JN97
JN76 JN86 JN96
JN35 JN55 JN75 JN85 JN95
JN44 JN54 JN64 JN94 KN04
JN63

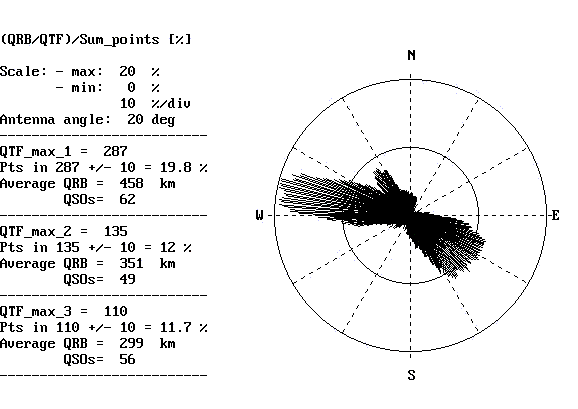

Here are azimuth diagrams for OK1KIM:

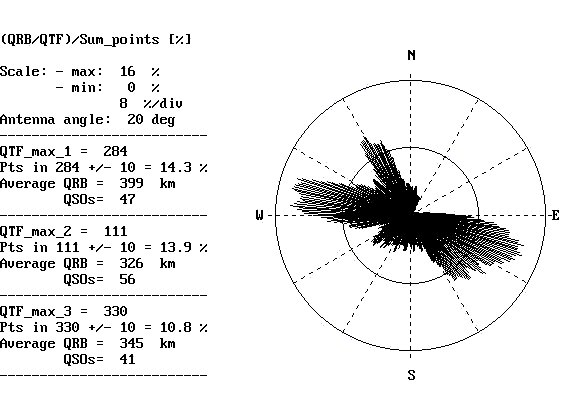

And for OK2KKW :

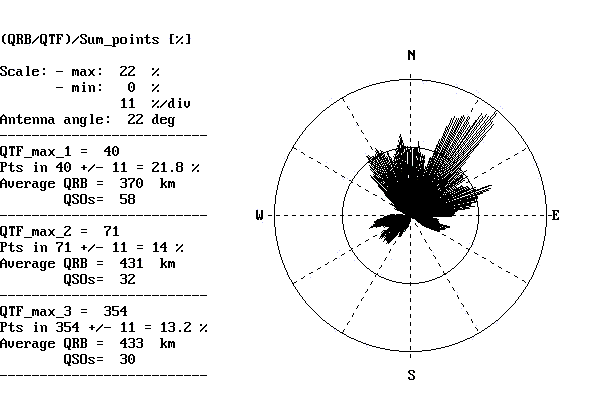

For comparison, S50C diagram is here:
I noticed, that there is big hole from JO60JJ (OK2KKW) towards directions betwen 30 and 90 degrees. Some higher hill or no activity? (OK2KKW Note: Fichtelberg and Klinovec forested hills, both 300 m higher in 6 to 9 km distance)
As you can see from JN76JG we have a hole betwen 270 and 300 degrees, because of Slovenian alps, which are for us 1000m higher at distance of 20 km. To 120-180 degrees there is very little activity from T9, 9A also some mountain chain is there. Towards OK1 we have 600m higher mountain in distance of 23 km, so we must be quite happy with what we are doing. Best locations for OK1 and DL from S5 are in very eastern part to avoide alps. JN86 square (S57O, S51ZO, S52EZ) , also JN76OL,OM,RL,PL are good. You worked S53T, S51SL from there in this contest. But there is problem, if you are too east you don't work so many Italians.(20-30) From western S5 they wkd over 220 I stn. We do around 100. There sre some other options in statistic with VHFCTEST ( http://lea.hamradio.si/~s53ww/ )software. 73's GL Matija S53MM
