PERSEIDS SHOWER 2007 - OK1TEH JO70FD
144 MHz

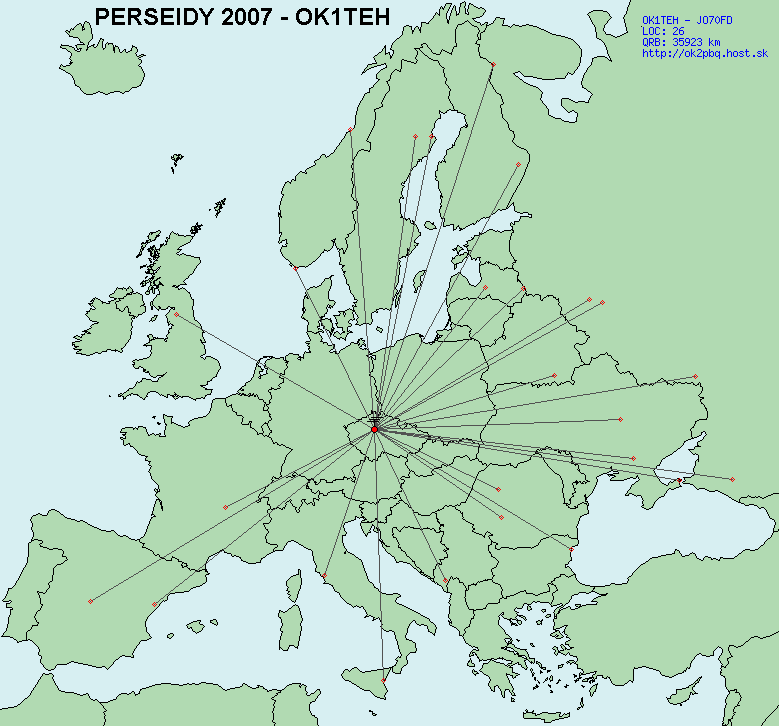

QSOs worked by OK1TEH on 2 m (all FSK441). http://ok1teh.nagano.cz/ms_log.htm#last Mode: FSK441 Loc: JO70FD QTH: Prague 320 m.a.s.l. Equipment: FT847 PA 850W Ant: 10el dk7zb 6m long (gain 13.15 dB) qrb was based on Ellipsoid of 1924
----------------------------------------------------------------------------------------------------- Date Year | UTC | QRG | Call | RST | Rcvd | km | Shower | QSL | Comment ----------------------------------------------------------------------------------------------------- 19.07.2007 08:39 144.377 YL/DL1RNW 26 R26 KO46AK 1142 Perseids #470 0803-0839 CR 19.07.2007 09:10 144.380 F6BEG/P 26 R27 JN15VQ 938 Perseids #473 0850-0910 CS 19.07.2007 09:52 144.360 YL3GDR R26 26 KO26HT 1001 Perseids 0942-0952 CS 07.08.2007 23:27 144.356 RV6YY R26 26 LN04AO 2017 Perseids #474 2248-2327 CS 08.08.2007 00:07 144.357 UU1AZ R26 26 KN85FI 1727 Perseids #475 2352-0007 CS 08.08.2007 20:21 144.375 RX3AA/3 26 R26 KO65SE 1403 Perseids #476 1954-2001 CR 08.08.2007 22:07 144.370 US0GB 26 R27 KN67UA 1458 Perseids #477 2056-2207 CR 09.08.2007 09:09 144.370 YO5TP 26 R26 KN16SS 769 Perseids 0846-0909 CS 10.08.2007 07:36 144.355 RK3QWM 26 R26 KN99XX 1818 Perseids #478 0716-0736 CR 10.08.2007 09:38 144.393 LA/PA5DD 26 R26 JP55UB 1669 Perseids #479 0924-0938 CR 10.08.2007 14:42 144.353 LZ2BB/2 37 R27 KN43AG 1287 Perseids #480 1438-1442 CR 11.08.2007 00:09 144.370 IK5JWQ 26 R26 JN52NS 859 Perseids #481 2330-0009 CR 11.08.2007 09:16 144.347 RX3AGD/3 26 R27 KO74GU 1455 Perseids #482 0902-0916 CR 11.08.2007 09:27 144.382 YO5KAI/P 57 55 KN15SI 864 Perseids TR/MS #483 0927 CR 12.08.2007 03:00 144.370 IT9RYJ 26 R27 JM77MN 1399 Perseids #484 0213-0300 CR 12.08.2007 11:45 144.353 OH8K 26 R26 KP57AQ 2136 Perseids #485 1012-1145 CR 12.08.2007 19:09 144.346 EA4CIE R26 26 IM79XU 1845 Perseids #486 1813-1909 CS 13.08.2007 01:59 144.353 OH7MA 26 R26 KP52BN 1679 Perseids #487 0148-0159 CS 13.08.2007 04:45 144.363 EA3BB/5 36 R27 JN00AI 1565 Perseids #488 0437-0445 CR 13.08.2007 21:23 144.377 EW8RR 26 R26 KO41OV 1052 Perseids #489 2023-2123 CR 13.08.2007 22:53 144.337 G0ISW 26 R37 IO84OQ 1274 Perseids #490 2150-2253 CS 15.08.2007 23:22 144.362 UT1HZM 36 R36 KN69RA 1377 Perseids #491 2215-2322 CS 16.08.2007 00:18 144.358 SK2AT 26 R27 KP04NP 1662 Perseids 0004-0018 CS 16.08.2007 00:43 144.365 4O/YZ1EW 26 R26 JN92PL 930 Perseids 0037-0043 CR 17.08.2007 07:26 144.347 SM/DJ8MS 36 R27 JP94PQ 1644 Perseids #492 0704-0726 CR 17.08.2007 15:54 144.358 LA/DG1BHA 36 R27 JO37MX 997 Perseids #493 1532-1554 CR
The shower peek was earlier then was expected - at 22 UTC on 12th August

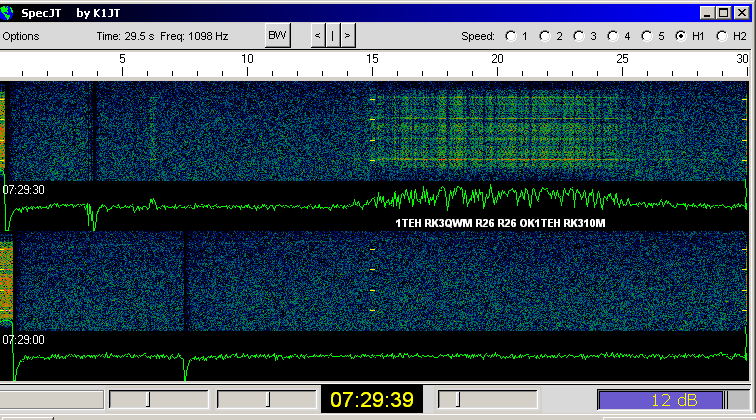

10.08.07 The big burst from RK3QWM's expedition to KN99XX 1818km during our qso

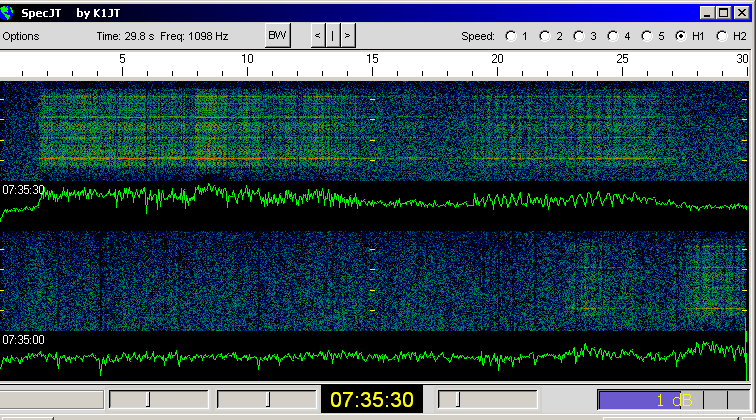

10.08.07 The big burst from RK3QWM KN99XX 1818km during our qso - 2nd picture

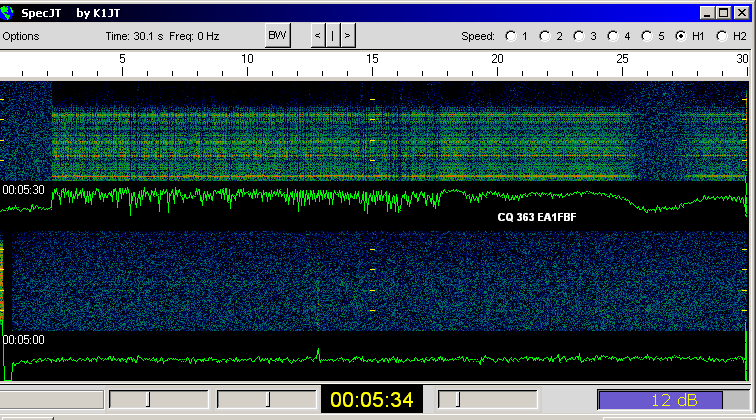

11.08.07 Big bursts from EA1FBF IN73WJ 1600km, QTF 180

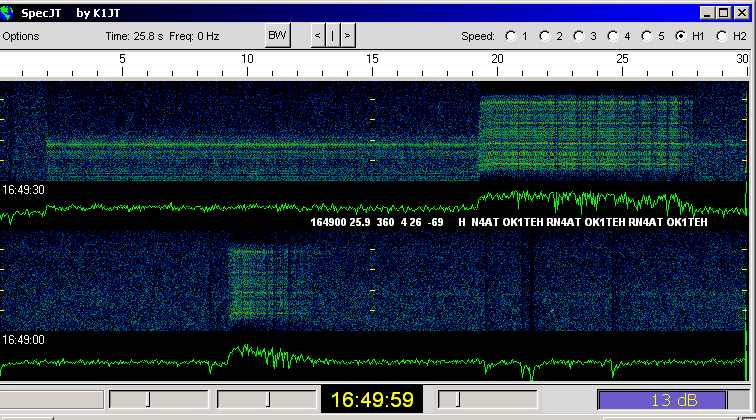

12.08.07 The big burst from RN4AT LN29LA 2195km during our test. Any more UA4 stations for future sked?

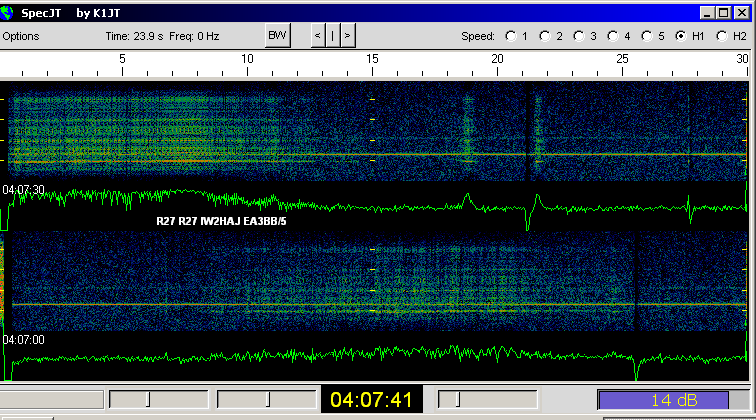

13.08.07 The big burst from EA3BB/5 JN00AI 1565km before our qso

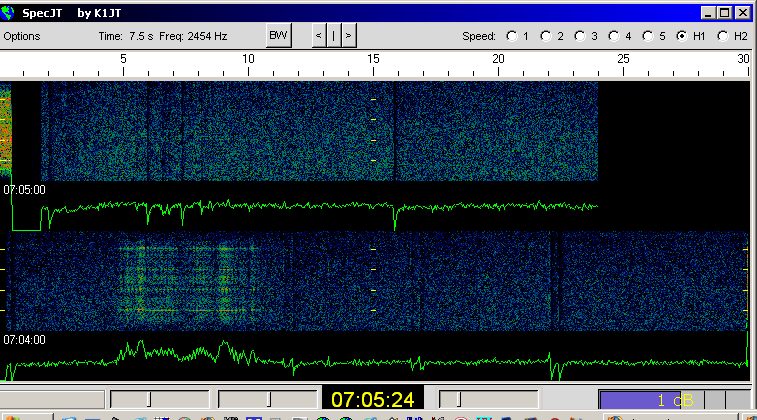

17.08.07 The 4 days after shower peek - burst from LA/DJ8MS JP94PQ 1644km

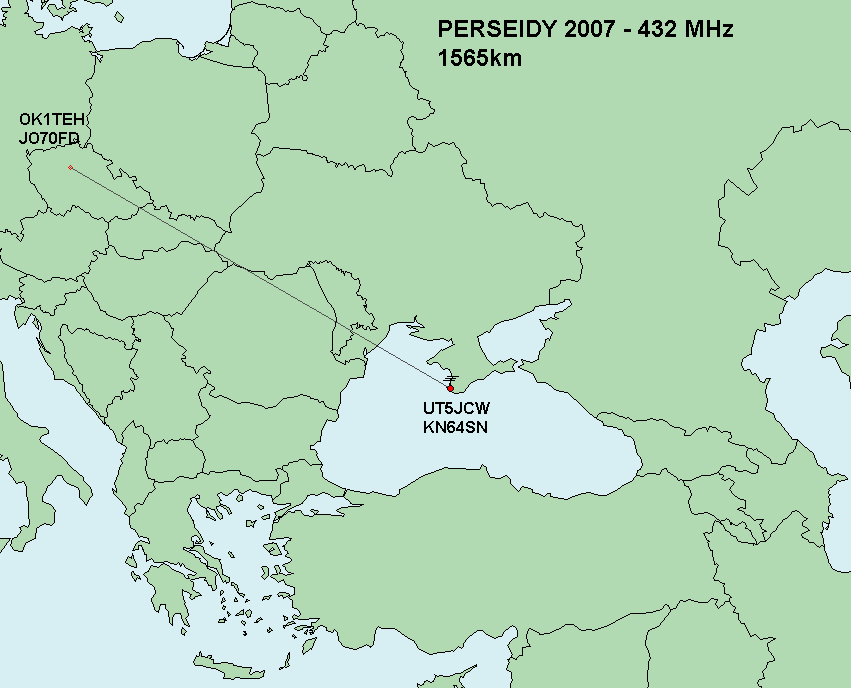

432 MHz QSOs worked by OK1TEH on 70 cm. http://ok1teh.nagano.cz/ms_70cmlog.htm Mode: FSK441 Loc: JO70FD QTH: Prague 320 m.a.s.l. Equipment: FT847 + preamp 0,4dB nf PA GS31B 250W (on WSJT) Ant: 23el DK7ZB 6m BOOM ------------------------------------------------------------------------------------------------------------- Date Year | UTC | QRG | Call | RST | Rcvd | km | Shower | QSL | Comment ------------------------------------------------------------------------------------------------------------- 13.08.2007 03:49 432.365 UT5JCW R26 26 KN64SN 1565 Perseids #112 0240-0349 Perseids 2007: SM2ILF 40ms (SM2ILF wkd OK1DFC), SK2AT nil, EB5EEO nil, RZ3AED nil, GW8ASA nil (he hrd me)
Comment: It was very fine contact. Serge hrd me FB however we made it after our 2nd test. When he got from me 20dB burst, he was so excited, so he start running with his GS35 PA on full power. As the the result was damaged tube & PA. The question was, should we continue? Of course, so he run on the roof and put on his small driver PA from Mirage with 100W output. And at last, I got "034900 10.6 160 1 26 50 R RRRRR", so contact was completed. Any conclusion from the test? 70cm MS is very depended on precise frequency of your TRX. S50C, OK2POI and UT5JCW were ok on 432.370,100 (100Hz above +-) however SM2ILF, SM2CEW and SK2AT on 432.199.400 more then 600Hz below the sked QRG. Is it due to some bad reference? 73 de Matej, OK1TEH
PS: Some words about 1st 70cm MS tests from Chris, GW4DGU: ...I agree with you about MS ops not being patient. In the 1970s, as G4DGU, I ran many 6hour skeds trying to make a complete QSO on 432. Despite having 1kW, a very good single loop yagi antenna and one of the first GaASFET preamplifiers in Europe I failed to do it, although I was heard and heard other people many times. I didn't make my first complete 432MS QSOs until I came back on the air 2003. -> Chris, do you have any idea about the 1st 70cm MS QSO ever? In the 70's I did a lot of tests with Karl, SM3AKW. I think the first 432MS QSO from these islands was an expedition station which included my friend G4VVZ/G4ZAP to EI (IO61!) in about 1982. I now think that was probably aircraft scatter, as it was only just over 1000km... ...The longest burst I've ever heard on 432 was from SM3AKW and was 35s! When I worked Karl in 2004 on HSCW we had several bursts <10s! mni tnx Chris & cu in Geminids! 73 Matej, OK1TEH

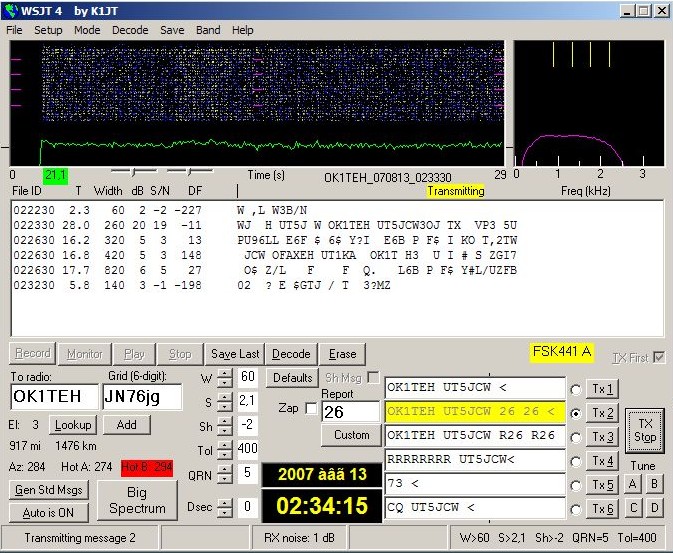

UT5JCW and his screen during our qso, chcek the 20dB BURST!!!
http://ut5jcw.com/1.jpg + http://ut5jcw.com/2.jpg + http://ut5jcw.com/3.jpg + http://ut5jcw.com/4.jpg

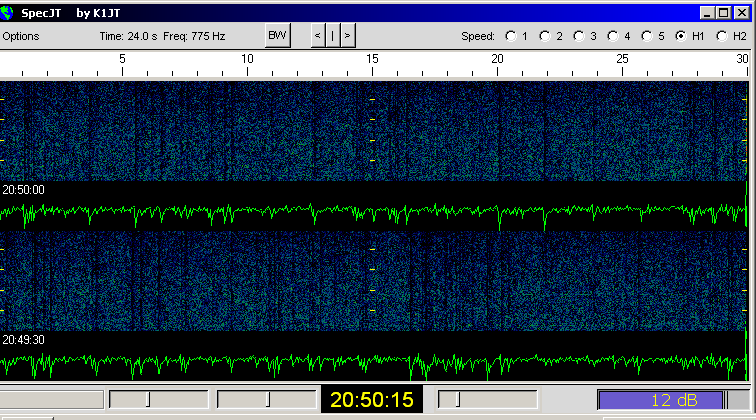

The view to my screen before our 1st 70cm test with UT5JCW, QRM/QRN level was "low"..

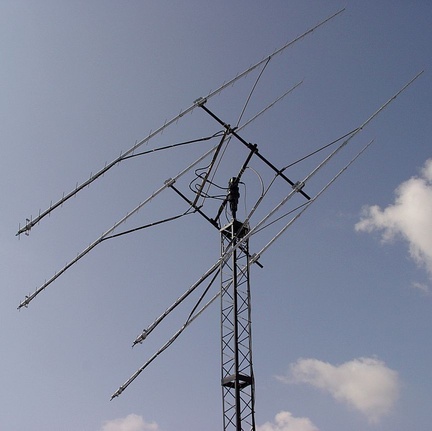

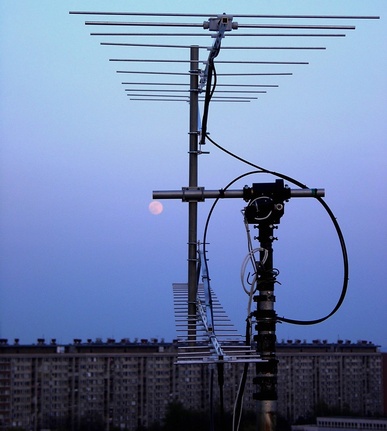

UT5JCW - antenna for 70cm - 4x 28el M2 -> OK1TEH - antenna for 70cm - 23el DK7ZB - QTF 110
