GI-39B
TRIODE
The GI-39B triode generates and amplifies RF oscillations in pulsed operation with anode modulation.
GENERAL
Cathode: indirectly heated,
oxide-coated.
Envelope: metal-ceramic with ring leads of cathode, heater and
grid.
Cooling: forced air.
Height: at most 147 mm.
Diameter: at most
100.2 mm.
Mass: at most 1.2 kg.

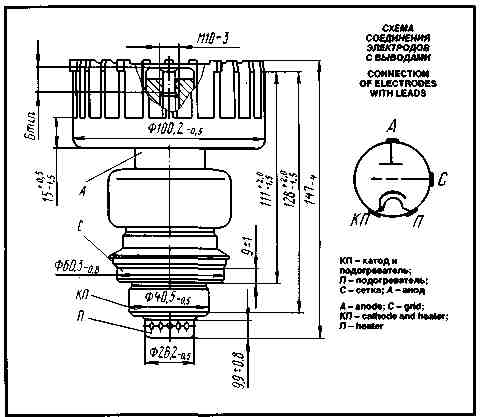

00061.jpg)
| OPERATING ENVIRONMENTAL CONDITIONS | |
| Vibration loads: | |
| frequencies, Hz | 2-2,000 |
| acceleration, m/s² | 4.9-98 |
| Multiple impacts with acceleration, m/s² | 343 |
| Linear loads with acceleration, m/s² | 294 |
| Ambient temperature, °C | -60 to+150 |
| Relative humidity at up to +40 °C, % | 95-98 |
| BASIC DATA Electrical Parameters | |
| Heater voltage (AC or DC), V | 12.6 |
| Heater current, A | 3.4-3.9 |
| Anode voltage (DC), kV | 2 |
| Mutual conductance, mA/V | 27-36 |
| Penetration factor (at anode voltage change 0.2 kV, anode current 0.25 A), % | 0.6-1 |
| Warm up time, s, at most | 90 |
| Oscillatory power in pulse generation mode (at peak anode voltage 20 kV, peak anode current 16 A, wavelength about 30 cm, 1/duty factor 500, pulse duration 2-5 µs), kW, at least | 128 |
| Interelectrode capacitance, pF: | |
| input | 21-25 |
| transfer | 4.2-6.3 |
| Limit Operating Values | |
| Heater voltage (AC or DC), V | 13.2-12 |
| Peak anode voltage, kV | 20 |
| Negative peak grid 1 voltage, kV | 1 |
| Dissipation, W: | |
| anode (average value) | 440 |
| grid | 5 |
| Peak anode current, A | 16 |
| Peak grid current, A | 7 |
| Minimum wavelength, cm | 25 |
| Minimum 1/duty factor | 500 |
| Pulse duration, µs: | |
| maximum | 10 |
| minimum | 1 |
| Temperature, °C: | |
| anode lead | 200 |
| cathode lead | 150 |
| grid lead | 180 |
| anode insulator | 250 |
| Standard Operating Conditions | |
| Heater voltage, V | 12.6 |
| Peak anode voltage, kV | 20 |
| Peak anode current, A | 16 |
| Wavelength, cm | 30 |
| Peak oscillatory power, kW | 128 |
| Pulse duration, µs | 2-4 |
| 1/duty factor | 500 |
00081.jpg)

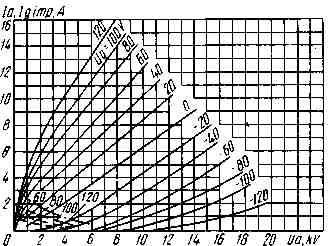

Averaged Peak Characteristic
Curves:
Uf = 12.6V; t = 2µs; frequency 1,000
imp/s;
_____ anode;
_ _ _ grid-anode
00082.jpg)

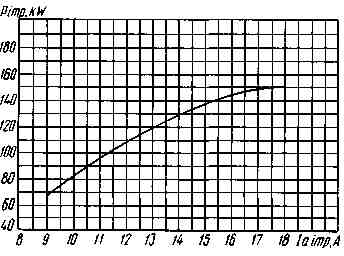

Averaged Peak Characteristic Curves Showing Oscillator
Output Power versus Anode Current:
Uf = 12.6V; Ua
imp = 20kV; t = 2 µs; frequency 1,000 imp/s
00091.jpg)

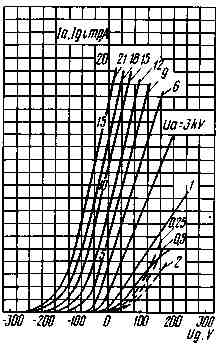

Averaged Peak Characteristic
Curves:
Uf = 12.6V; t = 2µs; frequency 1,000
imp/s;
_____ anode-grid;
_ _ _ grid
00092.jpg)

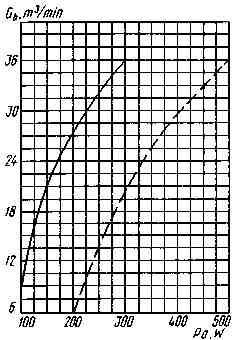

Characteristic Curves Showing Flow Rate of Envelope Cooling
Air versus Anode Dissipation:
_____ at 100°C;
_ _ _ at 160°C
