OK1TEH -> My
EME experiences
144 MHz (SINCE 11th April 2005) 432 MHz (SINCE 11th April 2005)
10el Y summary (hrd / the best signal /rig) 23el Y summary (hrd / the best signal /rig)
RN6BN -12dB 1916km WKD 32x15el Y + 1500W HB9Q 559cw 560km WKD 15m DISH + 2000W
IK3MAC 579cw 580km WKD 24x24el Y + 1100W DL9KR 539cw 441km WKD 16x24el Y + 1500W
W5UN -13dB 8467km WKD 32x17el Y + 1500W VK3UM 529cw 15913km WKD 10m DISH + 1000W NEW
RU1AA -14dB 1374km WKD 16x18el Y + 2000W KL6M 529cw 7594km 9m DISH + 1000W
F3VS 559cw 583km 24x20el Y + 1000W OH2PO 519cw 1280km WKD 16m DISH + 1000W
K5GW -15dB 8590km WKD 48x10el Y + 1500W N9AB -21dB 7314km WKD 16x22el Y + 1000W
DF7KF -15dB 567km WKD 16x18el Y + 1500W KE2N -23dB 6953km 16x23el Y + 800W
SV1BTR 529CW 1454km 16x06el Y + 800W K2UYH -24dB 6663km WKD 8,7m DISH + 1000W
KB8RQ -16dB 7296km WKD 24x13el Y + 1500W SM2CEW 319cw 567km NC 10m DISH + 1000W
W5UWB -17dB 9107km NC 1x21el Y + 1500W 7M2PDT -25dB 9147km 16x14el Y + 1500W
HB9Q -17dB 560km WKD 8x19el Y + 1000W K3MF -28dB 6799km 8x25el Y + 800W
EA6VQ -18dB 1473km WKD 8x17el Y + 2000W
RK3FG -18dB 1633km WKD 4x12el Y + 1200W
EA3DXU -18dB 1348km 2x17el Y + 1800W
K7MAC -19dB 8559km 4x15el Y + 1500W
DF2ZC -20dB 600km WKD 4x18el Y + 1000W
RA3AQ -20dB 1604km WKD 6x18el Y + 1500W
F6FHP -21dB 1268km WKD 4x16el Y + 1000W NEW
RU1AA -21dB 1482km WKD 4x15el Y + 2000W
S52LM -21dB 468km WKD 4x17el Y + 1500W
N5BLZ -21dB 8793km WKD 4x28el Y + 1500W
ZL3TY -21dB 18047km WKD 4x12el Y + 500W
RW1AY/1 -21dB 1516km 4x14el Y + 1200W
SK6EI -21dB 924km 4X17el Y + 1000W
UA4AQL -21dB 2196km 4x13el Y + 1200W
PA2CHR -21dB 631km 4x18el Y + 1500W
W7GJ -22dB 8170km WKD 16x17el Y + 1500W
SP2OFW -22dB 412km WKD 4x14el Y + 1000W
K9MRI -22dB 7269km WKD 8x10el Y + 1500W
OH7PI -22dB 1618km WKD 4x16el Y + 1000W
ON4GG -23dB 743km WKD 8x18el Y + 1000W
ZS5LEE -23dB 8997km WKD 4x28el Y + 900W
S54T -23dB 468km WKD 4x17el Y + 1000W
ES6RQ -23dB 1149km WKD 8x18el Y + 1500W
K4XR -23dB 7880km 2x18el Y + 1500W
F1FLA -23dB 797km 4x25el Y + 1500W
KJ9I -23dB 7727km 8x28el Y + 1500W
KC4VI -23dB 8125km 4x10el Y + 1000W
ON4IQ -23dB 741km WKD 8x18el Y + 1000W
K5GMX -23dB 6436km 4x13el Y + 1500W
I6BQI -23dB 856km 4x16el Y + 1000W
YU1CF -23dB 905km WKD 16x7el Y + 1500W
I6WJB -23dB 857km 4x17el Y + 1000W
W7EME -23dB 8782km 4x17el Y + 1500W
PE1BTX -24dB 666km 4x12el Y + 1500W
IK1UWL -24dB 866km 4x14el Y + 1000W
WA8CLT -24dB 7201km 4x10el Y + 1000W?
ZS6WAB -24dB 8334km WKD 8x17el Y + 400W
SM5TSP -24dB 1137km WKD 4x18el Y + 750W
JH5FOQ -24dB 8919km 4x28el Y + 600W
UR5LX -24dB 1522km 4x12el Y + 1000W
SV8CS -24dB 1465km 4x17el Y + 1000W
EA5SE -24dB 1799km WKD 4x17el Y + 1500W
RA0FCA -24dB 8165km 4x30el Y + 1000W?
UA9FAD -24dB 2824km WKD 4x16el Y + 1000W
W7UIV -25dB 9336km 8x8el Y + 1000W
IK2DDR -25dB 588km 4x18el Y + 1000W?
RD3BD -24dB 1670km 4x14el Y + 1000W?
AA7A -25dB 8344km 6x14el Y + 1500W
AA7A -25dB 8344km 6x14el Y + 1500W
SM2ILF -25dB 1662km 6x16el Y + 1000W?
PA0JMV -25dB 664km WKD 2x16el Y + 800W
DK8ZJ -25dB 549km WKD 4x12el Y + 1000W
F8DO -25dB 845km WKD 4x11el Y + 1200W
K7XQ -25dB 9365km 4x14el Y + 1500W
LU6KK -25db 11574km 4x14el Y + 1000W
N9GX -25db 7341km 4x18el Y + 1000W
DJ9CZ -25dB 599km NC 4x15el Y + 1000W
VK7MO -25dB 16376km WKD 4x10el Y + 400W
K2BLA -25dB 7977km 8x10el Y + 400W
DL9MS -25dB 475km 4x16el?Y + 1500W?
9H1TX -26dB 1588km 2x16el Y + 1000W?
VK2KU -26dB 16053km 4x12el Y + 1200W
UA9SL -26dB 2827km WKD 4x16el Y + 1500W
K7AD -26dB 8449km 4x17el Y + 1500W
F9HS -26dB 1059km 4x10el Y + 1000W
DL7UAE -26dB 254km 4x16el?Y + 1500W
JH2COZ -26dB 9126km 4x14el Y + 1000W
PA3DZL -27dB 709km 4x17el Y + 1000W
F6HVK -27dB 778km 4x12el Y + 1000W
DL8GP -27dB 549km 8x10el Y + 1000W
PA1T -27dB 631km 4x18el Y + 1000W
SM5CUI -27dB 1111km 8x10el Y + 800W
G4CBW -27dB 1202km 4x9el Y + 1000W
FM5CS -27dB 7760km 4x17el Y + 1500W NEW
G4FUF -28dB 992km 16el Y + 1500W
KE7NR -28dB 9360km 4x12el Y + 1500W
EI4DQ -28dB 1586km 4x10el Y + 1000W
RA6DA -28dB 1915km 6x10el Y + 800W
KM5PO -28dB 8650km 4x18el Y + 1500W
5B8AD -28dB 2300km 2x16el Y + 1000W
KD3UY -29dB 6890km 2x16el Y + 1000W
3X0Y -29dB 4x9el Y + 800W
4el Y summary (hrd / the best signal /rig):
RN6BN -18dB 1916km WKD 32x15el Y + 1500W
KB8RQ -18dB 7296km WKD 24x13el Y + 1500w
I2FAK -21dB 686km 24x19el Y + 1500W?

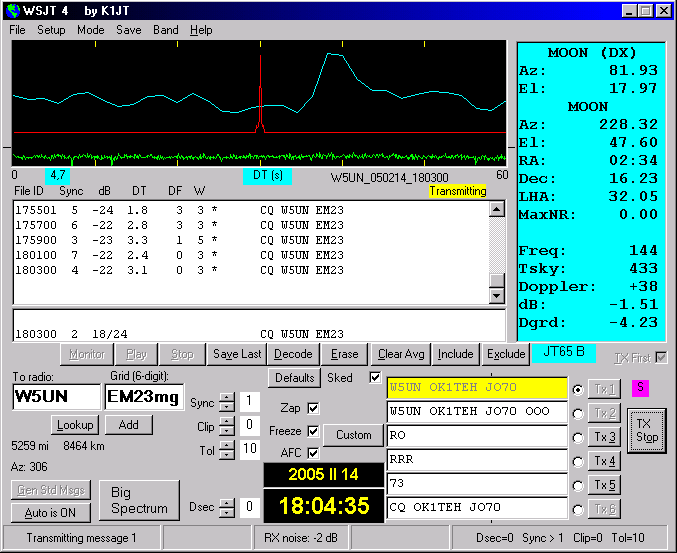

W5UN -22dB 8467km WKD 32x17el Y + 1500W
RU1AA -23dB 1373km 16x18el Y + 2000W

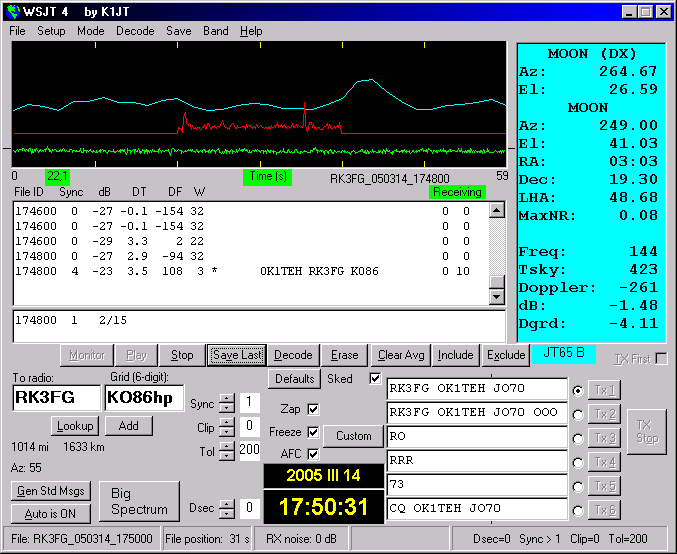

RK3FG -23dB 1633km 4x14el Y + 1200W
HB9Q -27dB 560km 8x19el Y + 2000W
EA6VQ -29dB 1340km 8x17el Y + 2000W
F8DO -29dB 845km 4x11el Y + 1500W

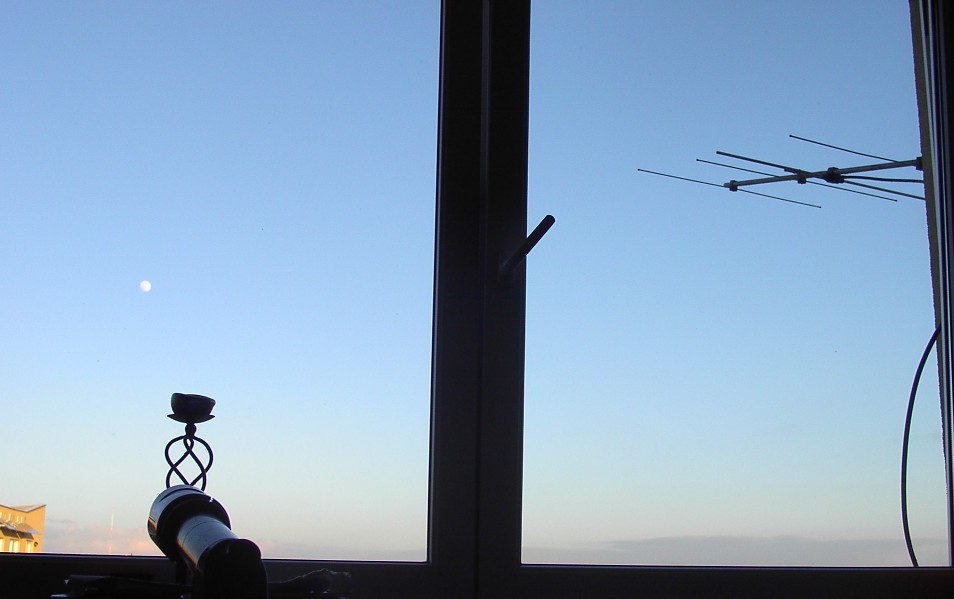

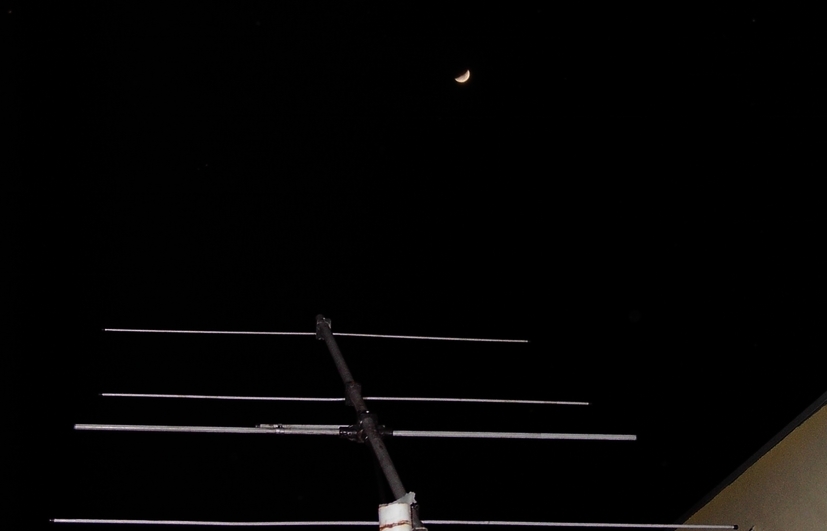

I was qrv JT65b with 4el OK1KRC yagi (gain 6.5dB) + 100W PA + FT847 till
10.04.2005
now i'm qrv with 10el dk7zb 6m long yagi (gain 13.15dB) + 100W PA + FT847
JT65B log: (blue fields - signals hrd
via EME - only 100% decoded)
full elevation
old ANT:

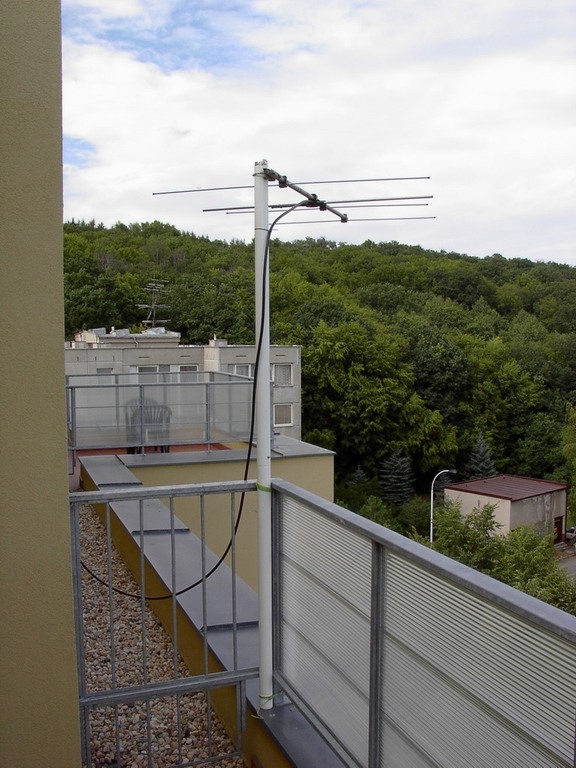

http://www.home.karneval.cz/00000104/newqth/im003731.jpg

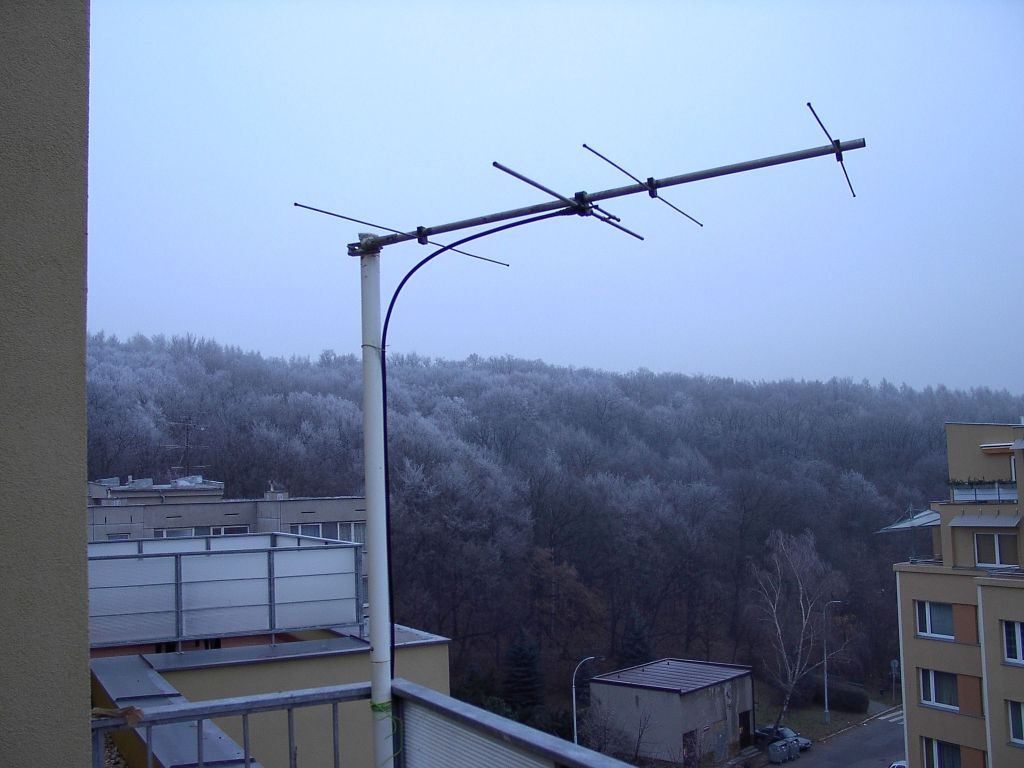

http://www.home.karneval.cz/00000104/trdx/im003968.jpg
NEW ANT:
http://home.karneval.cz/00000104/newant/
==========================================
DATE TIME Sync dB DT DF W
------------------------------------------------------------------
28.08.04 210001 6 -21 1.6 277 4 * CQ I2FAK JN45
21:08:38 I2FAK Franco Matej I have you!!! -30db perfect decode
------------------------------------------------------------------
29.08.04 190601 1 -22 -0.5 191 5 * ZS5LEE DK7BY JO33
29.08.04 205801 9 -21 1.9 162 3 * CQ I2FAK JN45
------------------------------------------------------------------
01.09.04 200200 8 -23 2.6 151 2 * IC8FAX I2FAK JN45
01.09.04 202000 3 -25 2.6 210 8 * QRZ I2FAK JN45

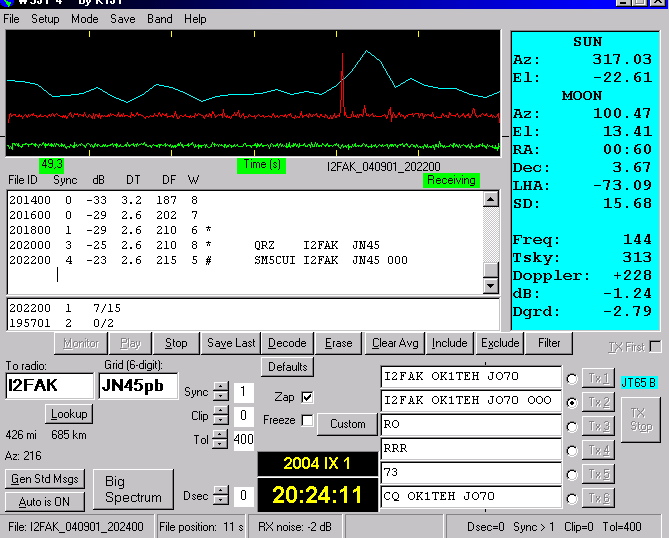

01.09.04 202200 4 -23 2.6 215 5 # SM5CUI I2FAK JN45 OOO
01.09.04 204600 4 -26 2.6 169 9 * CQ I2FAK JN45
01.09.04 210000 2 -24 2.5 188 5 * CQ I2FAK JN45
01.09.04 210600 3 -24 2.5 127 4 * QRZ I2FAK JN45
01.09.04 211800 5 -23 2.6 134 3 # OK1MZM I2FAK JN45 OOO
01.09.04 212600 1 -24 2.6 106 7 # OK1MZM I2FAK JN45 OOO
---------------------------------------------------------------
26.09.04 183201 3 -22 2.3 207 5 * ZS6WAB I2FAK JN45
26.09.04 231100 8 -24 2.8 0 5 * OK1TEH KB8RQ EM79
26.09.04 230700 4 -25 2.8 12 6 * OK1TEH KB8RQ EM79
---------------------------------------------------------------
PA1GYS hrd ok1teh -22dB ant to Moon
10/15 15:29 152700 1 -29 3.2 -343 6 * Matej this is you but no decodes yet.(KB8RQ)
---------------------------------------------------------------
23.10.04 162203 2 -24 -0.1 141 6 * OK1TEH I2FAK JN45
---------------------------------------------------------------

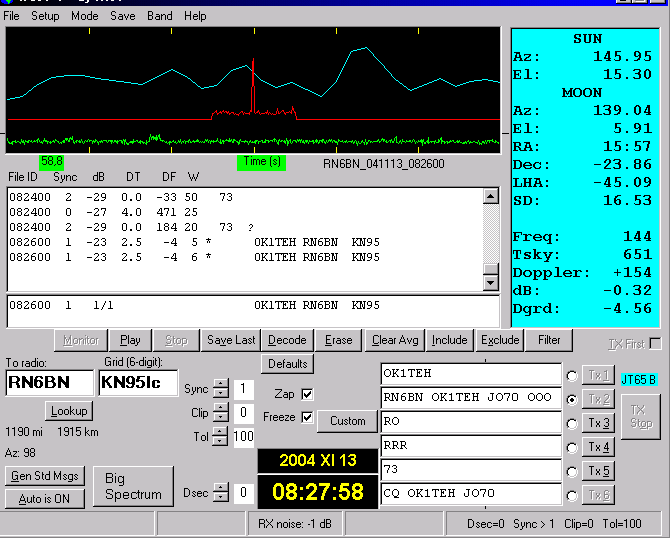

13.11.04 082600 1 -23 2.5 -4 5 * OK1TEH RN6BN KN95
13.11.04 084000 3 -26 2.4 -11 3 * OK1TEH RL3PXT KH95
13.11.04 085200 2 -24 2.3 5 4 * OK1TEH RN6BN KN95
13.11.04 085600 2 -24 2.4 -8 3 * OK1TEH RN6BN KN95
13.11.04 094200 3 -25 2.2 -48 5 * OK1TEH RN6BN KN95
13.11.04 094200 3 -25 2.2 -48 5 * OK1TEH RN6BN KN95
13.11.04 094400 2 -24 2.0 -53 5 * OK1TEH RN6BN KN95
13.11.04 101400 2 -24 2.0 -16 3 * OK1TEH RN6BN KN95
13.11.04 103600 2 -28 2.9 -24 5 * OK1TEH RN6BN KN95
09:47:01 RN6BN Sam Matej I also see U signal, but still no decode. Continue!!! !!!
---------------------------------------------------------------
14.11.04 111800 4 -23 2.6 57 4 # SM5DIC I2FAK JN45 OOO
---------------------------------------------------------------
20.11.04 154601 6 -24 2.0 35 4 * CQ I2FAK JN45
20.11.04 154801 5 -22 1.8 11 3 * CQ I2FAK JN45
---------------------------------------------------------------
23.11.04 181800 1 -26 3.5 76 7 * OK1TEH RN6BN KN95
18:28:45 RN6BN Sam wow Matej I decode ur signal in my 2nd PC RN6BN OK1TEH JO70 everage
---------------------------------------------------------------
26.11.04 161600 3 -22 4.0 19 3 * CQ RN6BN KN95
26.11.04 162400 3 -23 3.7 40 9 * QRZ RN6BN KN95
26.11.04 162600 6 -24 3.8 32 8 * QRZ RN6BN KN95
26.11.04 162800 4 -22 3.8 34 10 * QRZ RN6BN KN95
26.11.04 163000 5 -22 3.8 48 4 * G0CUH RN6BN KN95
26.11.04 164200 4 -24 3.7 73 5 * QRZ RN6BN KN95
26.11.04 164400 9 -20 3.7 8 3 * QRZ RN6BN KN95
26.11.04 165000 4 -21 3.8 -19 5 # SP4MPB RN6BN KN95 OOO
26.11.04 165200 8 -25 0.0 11 5 RRR
26.11.04 170000 1 -24 3.7 -3 9 * OK1TEH RN6BN KN95
26.11.04 170200 5 -22 3.7 8 5 * OK1TEH RN6BN KN95
26.11.04 170400 2 -27 3.6 12 8 * OK1TEH RN6BN KN95
26.11.04 170600 4 -23 3.7 1 5 * OK1TEH RN6BN KN95
26.11.04 170800 3 -24 3.6 -12 6 * OK1TEH RN6BN KN95
26.11.04 171000 2 -24 3.9 2 6 * OK1TEH RN6BN KN95
26.11.04 171200 2 -21 3.6 0 5 # F5LRL RN6BN KN95 OOO
26.11.04 171400 9 -25 0.0 -1 8 RRR
26.11.04 171600 2 -29 0.0 -3 6 73
26.11.04 172000 2 -25 3.5 42 6 * OK1TEH RN6BN KN95
26.11.04 172400 2 -24 3.6 8 6 * OK1TEH RN6BN KN95
26.11.04 172600 5 -21 3.5 1 6 * OK1TEH RN6BN KN95
---------------------------------------------------------------
28.11.04 175600 3 -21 2.7 0 5 * CQ RN6BN KN95
28.11.04 175800 4 -23 2.7 -6 5 * CQ RN6BN KN95
28.11.04 180000 4 -23 2.7 -11 3 * QRZ RN6BN KN95
28.11.04 182800 3 -24 3.6 -10 5 * CQ RN6BN KN95
28.11.04 183000 4 -26 3.6 -23 8 * CQ RN6BN KN95
---------------------------------------------------------------
WKD 2 QSO'S WITH RN6BN
---------------------------------------------------------------
23.02.05 164400 1 -26 2.3 -2 2 * CQ I2FAK JN45 ?
23.01.05 164400 1 -26 2.3 -2 2 * CQ I2FAK JN45 ?
23.01.05 164600 2 -26 3.0 -2 5 * CQ I2FAK JN45
23.01.05 164800 2 -26 3.0 -2 2 * CQ I2FAK JN45
23.01.05 170000 2 -24 2.9 4 6 * CQ I2FAK JN45
23.01.05 170200 6 -25 2.8 3 2 # UA9SL I2FAK JN45 OOO
23.01.05 171401 2 -27 2.0 -1 6 * CQ I2FAK JN45
23.01.05 171600 4 -25 2.4 -11 3 * CQ I2FAK JN45
23.01.05 175800 4 -27 2.4 83 3 * CQ I2FAK JN45
23.01.05 180000 3 -28 2.6 1 5 * CQ I2FAK JN45 ?
23.01.05 181200 2 -27 3.0 -5 3 * OK1TEH I2FAK JN45 ?
23.01.05 181400 2 -29 2.4 -7 5 * OK1TEH I2FAK JN45
23.01.05 182000 1 -27 3.0 6 2 * OK1TEH I2FAK JN45
---------------------------------------------------------------
24.01.05 204601 2 -27 2.0 -5 2 * CQ HB9Q JN47
24.01.05 212200 1 -27 2.7 -8 2 * CQ HB9Q JN47
24.01.05 212200 1 -27 2.7 -8 2 * CQ HB9Q JN47
24.01.05 213800 2 -27 2.8 -5 2 * CQ HB9Q JN47

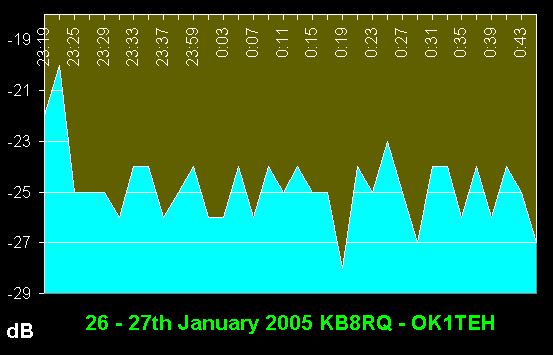

24.01.05 232501 4 -26 2.5 393 22 * CQ KB8RQ EM79
---------------------------------------------------------------
25.01.05 000501 2 -24 2.4 293 4 * CQ KB8RQ EM79
25.01.05 000701 3 -25 2.5 291 3 * CQ KB8RQ EM79
25.01.05 001100 4 -25 3.4 586 6 * CQ KB8RQ EM79
25.01.05 001300 1 -27 3.5 -1 5 * CQ KB8RQ EM79
25.01.05 001300 1 -27 3.5 -1 5 * CQ KB8RQ EM79

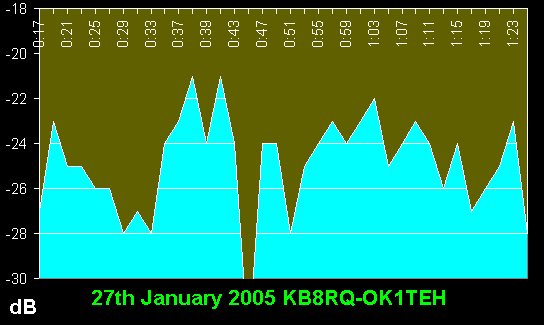

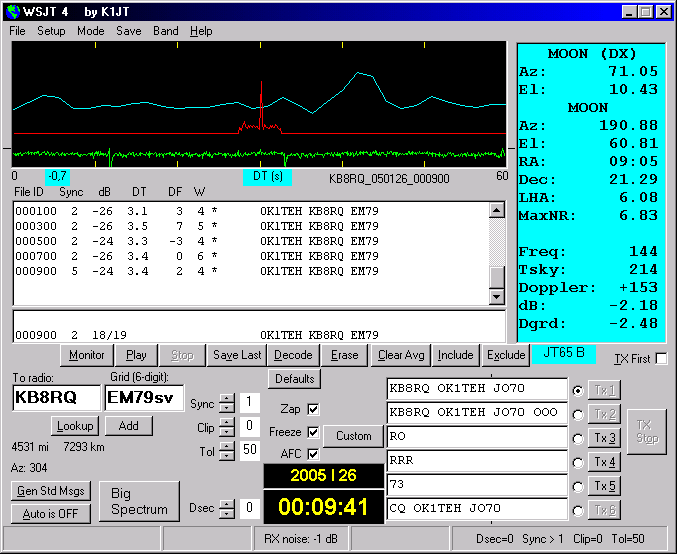

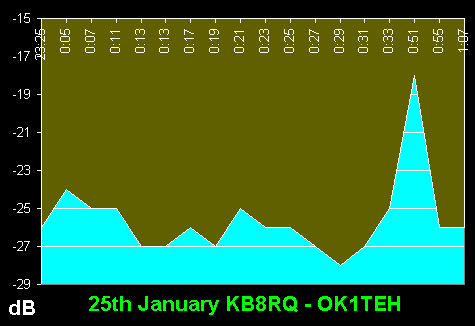

25.01.05 001700 3 -26 3.5 11 4 * OK1TEH KB8RQ EM79
25.01.05 001900 3 -27 2.8 13 5 * OK1TEH KB8RQ EM79
25.01.05 002100 3 -25 3.2 24 5 * OK1TEH KB8RQ EM79
25.01.05 002300 1 -26 3.0 32 3 * OK1TEH KB8RQ EM79
25.01.05 002500 3 -26 3.2 11 2 * OK1TEH KB8RQ EM79
25.01.05 002700 2 -27 3.5 6 3 * OK1TEH KB8RQ EM79
25.01.05 002900 2 -28 3.4 13 4 * OK1TEH KB8RQ EM79
25.01.05 003100 2 -27 3.2 8 2 * OK1TEH KB8RQ EM79
25.01.05 003300 2 -25 3.3 13 2 * OK1TEH KB8RQ EM79
25.01.05 005100 1 -18 3.3 5 4 * OK1TEH KB8RQ EM79
25.01.05 005500 1 -26 2.8 11 3 * OK1TEH KB8RQ EM79
25.01.05 010700 1 -26 3.4 9 4 * OK1TEH KB8RQ EM79
25.01.05 180001 3 -25 2.1 -5 13 * CQV137 RN6BN
25.01.05 180601 1 -19 2.2 5 2 * CQV RN6BN
25.01.05 180801 3 -25 2.1 5 5 * CQV RN6BN
25.01.05 181001 3 -23 2.1 4 6 * CQV RN6BN
25.01.05 181800 6 -21 3.0 3 3 * OLS RR73 BN
25.01.05 182000 3 -25 3.1 2 4 * OLS RR73 6BN
25.01.05 183400 7 -23 3.9 2 4 * CQH RN6BN
25.01.05 183600 4 -24 3.3 2 3 * CQV RN6BN
25.01.05 183801 9 -21 3.0 3 3 # DL0EE RN6BN KN95 OOO
25.01.05 184000 5 -27 3 4 RO
25.01.05 184200 6 -26 1 6 RRR
25.01.05 184400 4 -28 1 4 73
25.01.05 185400 3 -25 3.5 -2 5 # DG0FE RN6BN KN95 OOO
25.01.05 185600 4 -28 -3 41 RRR
25.01.05 185800 3 -28 -3 3 73
25.01.05 190200 2 -23 3.7 -5 3 * CQH RN6BN
25.01.05 190400 2 -25 3.5 -6 5 * QRZV RN6BN
25.01.05 190600 6 -23 3.9 3 4 * QRZH RN6BN
25.01.05 191000 3 -19 3.7 0 4 # OK1TEH RN6BN KN95 OOO
25.01.05 191200 8 -25 -1 6 RRR
25.01.05 191400 2 -29 -3 7 73
25.01.05 191800 4 -22 3.8 -5 3 # PE1LWT RN6BN KN95 OOO
25.01.05 192000 4 -27 -7 5 RRR
25.01.05 192200 2 -29 -9 5 73

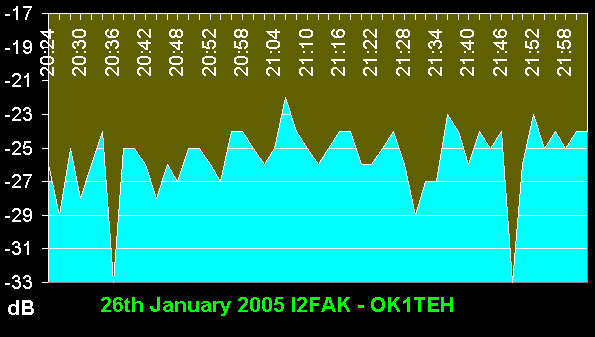

25.01.05 202401 3 -26 2.8 156 2 * CQ I2FAK JN45
25.01.05 202800 3 -25 3.8 5 2 * CQ I2FAK JN45
25.01.05 202800 3 -25 3.8 5 2 * CQ I2FAK JN45
25.01.05 203000 2 -28 3.3 3 4 * CQ I2FAK JN45
25.01.05 203200 4 -26 3.5 -3 3 * CQ I2FAK JN45
25.01.05 203400 3 -24 3.4 -4 5 * CQ I2FAK JN45
25.01.05 204000 5 -25 3.5 -3 3 * CQ I2FAK JN45
25.01.05 204000 5 -25 3.5 -3 3 * CQ I2FAK JN45
25.01.05 204200 3 -26 3.7 -6 3 * CQ I2FAK JN45
25.01.05 204600 2 -26 3.2 -1 5 * CQ I2FAK JN45
25.01.05 205400 2 -27 3.7 -3 4 * CQ I2FAK JN45
25.01.05 205600 4 -24 3.6 -3 4 * CQ I2FAK JN45
25.01.05 205800 3 -24 3.8 -6 4 * CQ I2FAK JN45
25.01.05 210000 2 -25 3.6 -8 5 * CQ I2FAK JN45
25.01.05 210400 4 -25 3.7 -1 4 * CQ I2FAK JN45
25.01.05 210600 5 -22 3.7 -3 3 * CQ I2FAK JN45
25.01.05 210800 2 -24 3.7 -5 5 * CQ I2FAK JN45
25.01.05 211200 4 -26 3.7 -8 2 * CQ I2FAK JN45
25.01.05 211400 4 -25 3.7 -1 5 * CQ I2FAK JN45
25.01.05 211600 3 -24 3.0 -3 3 * CQ I2FAK JN45
25.01.05 211800 6 -24 3.6 -5 2 * CQ I2FAK JN45
25.01.05 212600 5 -24 3.4 -3 2 * CQ I2FAK JN45
25.01.05 212800 2 -26 3.3 -6 3 * CQ I2FAK JN45
25.01.05 213000 1 -29 3.6 0 5 * CQ I2FAK JN45
25.01.05 213200 2 -27 3.0 1 6 * CQ I2FAK JN45
25.01.05 213200 2 -27 3.0 1 6 * CQ I2FAK JN45
25.01.05 213400 1 -27 2.6 0 4 * CQ I2FAK JN45
25.01.05 213600 1 -23 3.6 -3 4 * OK1TEH I2FAK JN45
25.01.05 213800 3 -24 3.5 -5 4 * OK1TEH I2FAK JN45
25.01.05 214200 3 -24 3.5 3 3 * OK1TEH I2FAK JN45
25.01.05 214401 2 -25 2.6 0 3 * OK1TEH I2FAK JN45
25.01.05 214600 2 -24 3.2 -2 5 * OK1TEH I2FAK JN45
25.01.05 215000 4 -26 3.0 -5 3 * OK1TEH I2FAK JN45
25.01.05 215200 4 -23 3.8 -5 2 * OK1TEH I2FAK JN45
25.01.05 215400 2 -25 3.5 -7 5 * OK1TEH I2FAK JN45
25.01.05 215601 5 -24 3.0 0 2 * OK1TEH I2FAK JN45
25.01.05 215800 4 -25 2.9 0 3 * OK1TEH I2FAK JN45
25.01.05 220000 4 -24 3.2 -3 3 * OK1TEH I2FAK JN45
25.01.05 220200 4 -24 3.5 -4 5 * OK1TEH I2FAK JN45
25.01.05 231900 4 -22 3.3 -16 18 * OK1TEH KB8RQ EM79
25.01.05 232100 2 -20 3.3 -16 5 * OK1TEH KB8RQ EM79
25.01.05 232500 3 -25 3.3 -20 26 * OK1TEH KB8RQ EM79
25.01.05 232700 4 -25 3.0 -5 5 * OK1TEH KB8RQ EM79
25.01.05 232900 3 -25 3.3 -8 5 * OK1TEH KB8RQ EM79
25.01.05 233100 3 -26 3.0 2 5 * OK1TEH KB8RQ EM79
25.01.05 233300 5 -24 3.2 3 2 * OK1TEH KB8RQ EM79
25.01.05 233500 3 -24 3.8 5 2 * OK1TEH KB8RQ EM79
25.01.05 233701 5 -26 2.8 9 3 * OK1TEH KB8RQ EM79
25.01.05 234700 2 -25 3.5 11 7 * OK1TEH KB8RQ EM79
25.01.05 235900 2 -24 3.2 30 4 * OK1TEH KB8RQ EM79
---------------------------------------------------------------
26.01.05 000100 2 -26 3.1 3 4 * OK1TEH KB8RQ EM79
26.01.05 000300 2 -26 3.5 7 5 * OK1TEH KB8RQ EM79
26.01.05 000500 2 -24 3.3 -3 4 * OK1TEH KB8RQ EM79
26.01.05 000700 2 -26 3.4 0 6 * OK1TEH KB8RQ EM79
26.01.05 000900 5 -24 3.4 2 4 * OK1TEH KB8RQ EM79
26.01.05 001100 1 -25 3.3 3 5 * OK1TEH KB8RQ EM79
26.01.05 001300 3 -24 3.4 6 3 * OK1TEH KB8RQ EM79
26.01.05 001500 4 -25 2.8 7 5 * OK1TEH KB8RQ EM79
26.01.05 001700 3 -25 3.4 11 2 * OK1TEH KB8RQ EM79
26.01.05 001900 3 -28 3.2 13 6 * OK1TEH KB8RQ EM79
26.01.05 002100 3 -24 3.4 13 3 * OK1TEH KB8RQ EM79
26.01.05 002300 5 -25 3.3 4 5 * OK1TEH KB8RQ EM79
26.01.05 002500 3 -23 3.6 5 4 * OK1TEH KB8RQ EM79
26.01.05 002700 2 -25 3.4 6 6 * OK1TEH KB8RQ EM79
26.01.05 002900 2 -27 -0.4 6 6 * OK1TEH KB8RQ EM79
26.01.05 003100 3 -24 3.5 8 6 * OK1TEH KB8RQ EM79
26.01.05 003300 3 -24 3.5 -2 4 * OK1TEH KB8RQ EM79
26.01.05 003500 1 -26 3.4 1 5 * OK1TEH KB8RQ EM79
26.01.05 003700 1 -24 3.5 3 3 * OK1TEH KB8RQ EM79
26.01.05 003900 2 -26 3.2 3 4 * OK1TEH KB8RQ EM79
26.01.05 004100 2 -24 3.2 2 5 * OK1TEH KB8RQ EM79
26.01.05 004300 4 -25 2.8 3 3 * OK1TEH KB8RQ EM79
26.01.05 004500 3 -27 3.4 2 5 * OK1TEH KB8RQ EM79
26.01.05 004500 2 36/37 OK1TEH KB8RQ EM79
26.01.05 004700 3 -25 3.3 75 2 * CQ W5UN EM23
26.01.05 004900 5 -24 3.4 -3 3 * CQ W5UN EM23
26.01.05 005100 2 -24 3.2 -3 2 * CQ W5UN EM23
26.01.05 005301 1 -28 2.0 -4 19 * CQ W5UN EM23
26.01.05 210801 4 -25 1.7 3 3 * CQ I2FAK JN45 0 7
26.01.05 211400 3 -25 2.5 -13 2 * OK1TEH I2FAK JN45 0 10
26.01.05 211600 3 -29 2.4 -2 2 * OK1TEH I2FAK JN45 0 10
26.01.05 211600 3 -29 2.4 -2 2 * OK1TEH I2FAK JN45 0 10
26.01.05 211600 3 -29 2.4 -2 2 * OK1TEH I2FAK JN45 0 10
26.01.05 211800 3 -23 2.4 0 2 * OK1TEH I2FAK JN45 0 10
26.01.05 212000 4 -25 2.8 0 2 * OK1TEH I2FAK JN45 1 10
26.01.05 212200 1 -29 2.7 -2 5 * OK1TEH I2FAK JN45 0 10
26.01.05 212400 4 -27 2.6 -1 2 * OK1TEH I2FAK JN45 0 10
26.01.05 212600 1 -28 2.6 -1 5 * OK1TEH I2FAK JN45 0 10
26.01.05 212800 5 -28 2.6 -3 2 * OK1TEH I2FAK JN45 0 10
26.01.05 213000 1 -30 2.7 -2 10 * OK1TEH I2FAK JN45 0 9
26.01.05 213200 2 -27 2.6 -3 3 * OK1TEH I2FAK JN45 0 10
26.01.05 213400 2 -27 2.6 -5 4 * OK1TEH I2FAK JN45 ? 0 5
26.01.05 214000 4 -24 2.5 -38 2 * OK1TEH I2FAK JN45 0 10
26.01.05 214200 3 -25 2.8 3 2 * OK1TEH I2FAK JN45 0 10
26.01.05 214400 5 -25 2.6 2 2 * OK1TEH I2FAK JN45 0 10
26.01.05 214600 1 -28 2.4 1 4 * OK1TEH I2FAK JN45 0 10
26.01.05 214800 1 -27 2.1 -1 4 * OK1TEH I2FAK JN45 0 10
---------------------------------------------------------------
27.01.05 001700 3 -27 3.1 102 4 * OK1TEH KB8RQ EM79 0 10
27.01.05 001900 3 -23 3.3 -6 3 * OK1TEH KB8RQ EM79 1 10
27.01.05 002100 2 -25 3.4 -2 6 * OK1TEH KB8RQ EM79 0 10
27.01.05 002300 5 -25 3.2 -11 1 * OK1TEH KB8RQ EM79 1 10
27.01.05 002500 4 -26 3.2 -11 5 * OK1TEH KB8RQ EM79 0 10
27.01.05 002700 3 -26 3.4 -2 7 * OK1TEH KB8RQ EM79 1 10
27.01.05 002901 2 -28 1.8 -11 3 * OK1TEH KB8RQ EM79 0 10
27.01.05 003100 2 -27 3.1 -15 6 * OK1TEH KB8RQ EM79 0 10
27.01.05 003300 4 -28 3.2 -4 27 * OK1TEH KB8RQ EM79 0 10
27.01.05 003500 2 -24 3.3 -13 17 * OK1TEH KB8RQ EM79 0 10
27.01.05 003700 3 -23 3.4 89 3 * OK1TEH KB8RQ EM79 1 10
27.01.05 003900 1 -24 3.2 -11 3 * OK1TEH KB8RQ EM79 0 10
27.01.05 004100 3 -21 3.3 5 3 * OK1TEH KB8RQ EM79 1 10
27.01.05 004700 3 -24 3.5 -11 33 * OK1TEH KB8RQ EM79 0 10
27.01.05 004900 5 -24 2.6 -5 3 * OK1TEH KB8RQ EM79 1 10
27.01.05 005100 1 -28 3.4 1 6 * OK1TEH KB8RQ EM79 0 10
27.01.05 005300 1 -25 3.4 1 5 * OK1TEH KB8RQ EM79 0 10
27.01.05 005500 2 -24 3.4 -1 5 * OK1TEH KB8RQ EM79 0 10
27.01.05 005700 4 -23 4.5 -2 4 * OK1TEH KB8RQ EM79 0 10
27.01.05 005900 5 -24 3.2 -3 3 * OK1TEH KB8RQ EM79 1 10
27.01.05 010100 6 -23 3.2 -3 3 * OK1TEH KB8RQ EM79 1 10
27.01.05 010300 5 -22 3.2 -3 3 * OK1TEH KB8RQ EM79 0 10
27.01.05 010500 6 -25 2.8 -2 4 * OK1TEH KB8RQ EM79 0 10
27.01.05 010500 6 -25 2.8 -2 4 * OK1TEH KB8RQ EM79 0 10
27.01.05 010700 4 -24 3.4 -2 4 * OK1TEH KB8RQ EM79 0 10
27.01.05 010900 6 -23 3.3 0 3 * OK1TEH KB8RQ EM79 0 10
27.01.05 011100 3 -24 3.3 -2 5 * OK1TEH KB8RQ EM79 1 10
27.01.05 011300 2 -26 3.3 -1 5 * OK1TEH KB8RQ EM79 1 10
27.01.05 011500 4 -24 3.3 3 3 * OK1TEH KB8RQ EM79 0 9
27.01.05 011700 4 -27 3.2 6 5 * OK1TEH KB8RQ EM79 0 10
27.01.05 011900 2 -26 2.8 -4 5 * OK1TEH KB8RQ EM79 0 10
27.01.05 012100 2 -25 2.6 -3 3 * OK1TEH KB8RQ EM79 1 10
27.01.05 012300 3 -23 2.4 -3 3 * OK1TEH KB8RQ EM79 0 10
27.01.05 012500 2 33/35 OK1TEH KB8RQ EM79
27.01.05 012700 2 -24 2.8 32 2 * CQ W5UN EM23 0 10
27.01.05 013500 2 -26 2.9 3 3 * OK1TEH W5UN EM23 0 10
27.01.05 013700 3 -26 3.0 2 3 * OK1TEH W5UN EM23 0 10
-------------------------------------------------------------------
10.02.05 152401 3 -20 2.4 -137 3 * QRZ CQ RN6BN
10.02.05 152601 3 -18 2.4 -138 3 * CQV RN6BN
10.02.05 153001 6 -18 2.3 -2 4 * QRZV RN6BN
10.02.05 153201 3 -20 2.5 -3 3 * QRZH RN6BN
-------------------------------------------------------------------
QSO WITH KB8RQ http://home.karneval.cz/00000104/kb8rq_ok1teh/kb8rq_ok1teh.htm
-------------------------------------------------------------------
13.02.05 183601 6 -24 2.0 16 2 * CQ I2FAK JN45
13.02.05 183801 2 -25 1.8 16 5 * CQ I2FAK JN45
13.02.05 184001 2 -24 2.1 13 2 * CQ I2FAK JN45
13.02.05 184200 2 -27 2.5 12 6 * CQ I2FAK JN45
13.02.05 184402 7 -24 1.0 0 3 * CQ I2FAK JN45
13.02.05 184600 3 -25 2.9 0 2 * CQ I2FAK JN45
13.02.05 184800 1 -27 2.9 0 2 * CQ I2FAK JN45
13.02.05 185400 5 -25 2.6 -3 2 * CQ I2FAK JN45
13.02.05 185600 1 -26 2.5 -3 4 * CQ I2FAK JN45
13.02.05 191501 2 -25 2.7 129 5 * CQ W5UN EM23
13.02.05 191900 3 -23 3.2 9 4 * CQ W5UN EM23
13.02.05 191900 3 -23 3.2 9 4 * CQ W5UN EM23
13.02.05 192500 1 -23 3.3 -5 6 # K0AWU W5UN EM23 OOO
13.02.05 192700 2 -25 3.8 -6 6 # K0AWU W5UN EM23 OOO
13.02.05 192900 5 -27 5 6 RRR
13.02.05 193100 6 -26 15 14 73
13.02.05 193300 2 -24 3.3 14 5 * OK1TEH W5UN EM23
13.02.05 193500 2 -25 3.4 1 7 * OK1TEH W5UN EM23
13.02.05 193900 1 -26 1.9 1 3 * OK1TEH W5UN EM23
13.02.05 194100 2 -26 3.4 0 6 * OK1TEH W5UN EM23
13.02.05 194300 1 -27 3.4 -4 7 * OK1TEH W5UN EM23
13.02.05 194500 2 -29 2.9 7 5 * OK1TEH W5UN EM23
13.02.05 194900 2 -28 2.8 -5 9 * OK1TEH W5UN EM23
13.02.05 195100 3 -28 2.6 -8 7 * OK1TEH W5UN EM23
-------------------------------------------------------------------
QSO WITH W5UN http://home.karneval.cz/00000104/w5un_ok1teh/w5un_ok1teh.htm
-------------------------------------------------------------------
14.03.05 174800 4 -23 3.5 108 3 * OK1TEH RK3FG KO86 0 10
-------------------------------------------------------------------
15.03.05 200501 3 -28 2.1 0 2 * CQ W5UN EM23 0 10
15.03.05 200701 3 -28 2.0 -2 3 * CQ W5UN EM23 0 10
15.03.05 200900 2 -28 3.2 -3 2 * CQ W5UN EM23 0 10
15.03.05 201100 3 -26 2.9 -3 2 * CQ W5UN EM23 0 10
15.03.05 201700 3 -26 2.5 3 2 * CQ W5UN EM23 0 10
15.03.05 201900 1 -28 2.3 4 36 * CQ W5UN EM23 0 10
15.03.05 202300 8 -25 7 23 RRR 0 0
15.03.05 202500 10 -24 7 23 RRR 0 0
15.03.05 202700 10 -24 7 26 73 0 0
15.03.05 202900 10 -25 7 3 73 0 0
-------------------------------------------------------------------
16.03.05 185701 2 -30 2.1 11 1 * CQ W5UN EM23 0 4
16.03.05 185901 1 -28 2.3 0 3 * CQ W5UN EM23 0 10
-------------------------------------------------------------------
20.03.05 153800 2 -27 4.0 299 2 * CQ RN6BN KN95 0 6
20.03.05 181201 5 -25 3.9 -46 2 * CQ RN6BN KN95 1 10
20.03.05 181201 5 -25 3.9 -46 2 * CQ RN6BN KN95 1 10
20.03.05 183203 4 -24 2.6 16 2 # OK1TEH RN6BN KN95 OOO 1 10
20.03.05 183203 4 -24 2.6 16 2 # OK1TEH RN6BN KN95 OOO 1 10
20.03.05 183400 10 -23 5 4 RRR 0 0
20.03.05 184200 1 -24 4.8 -2 5 * CQ RN6BN KN95 0 10
20.03.05 184601 1 -26 4.7 -6 29 * CQ RN6BN KN95 0 10
03/20 18:22 182100 1 -26 2.5 -91 3 * RN6BN OK1TEH JO70
(RN6BN Sam xx KN95LC 62.183.41.10.dsl.kuban.ru)
03/20 18:24 Big signal Matej. AGN decode 182300 1 -27 2.6 -91 6 *
RN6BN OK1TEH JO70 (RN6BN Sam xx KN95LC 62.183.41.10.dsl.kuban.ru)
03/20 18:28 agn decode 182700 1 -27 2.4 -102 5 * RN6BN OK1TEH JO70
(RN6BN Sam xx KN95LC 62.183.41.10.dsl.kuban.ru)
03/20 18:32 agn decode 183100 1 -25 2.5 -108 5 * RN6BN OK1TEH JO70
(RN6BN Sam xx KN95LC 62.183.41.10.dsl.kuban.ru)
03/20 18:34 Matej strong RO from U :)) (RN6BN Sam xx KN95LC 62.183.41.10.dsl.kuban.ru)
03/20 18:36 OK1TEH Matej pse see http://iq.73.ru/EMEfiles/ok1teh4.png
(RN6BN Sam xx KN95LC 62.183.41.10.dsl.kuban.ru)
03/20 18:38 RX TNX SAM FB in PC2 WSJT4.7 (RN6BN Sam xx KN95LC 62.183.41.10.dsl.kuban.ru)
03/20 18:39 Hide san, I have your RRRs, many thanks for good QSO!
(K1JT Joe NJ FN20qi targe.cs.princeton.edu)
03/20 18:39 TNX Matej for test my antenna (RN6BN Sam xx KN95LC 62.183.41.10.dsl.kuban.ru)
03/20 18:40 Matej in next time pse dipole and 100wt :)) (RN6BN Sam xx KN95LC 62.183.41.10.dsl.kuban.ru)
03/20 18:43 K1JT tnx ! ;-) (OK1TEH/QRPP Matej xx JO70FD 84.242.127.1)
03/20 18:44 FB, Matej, we must work wome time! (K1JT Joe NJ FN20qi targe.cs.princeton.edu)
20.03.05 185600 7 -26 -41 5 73 ? 0 0
20.03.05 185800 5 -27 -3 5 73 ? 0 0
20.03.05 190000 5 -27 3 3 73 ? 0 0
20.03.05 190401 3 -24 3.4 2 4 * OK1TEH RU1AA KO48 ? 0 2
20.03.05 190800 2 -23 4.3 -3 4 * 0 0
20.03.05 191003 4 -24 0.5 -5 5 # O ? 0 0
20.03.05 192401 1 9/13 OK1TEH RU1AA KO48
03/20 19:18 191500 4 -29 3.8 -121 2 * RU1AA OK1TEH JO70 (RU1AA Alex MA ko48vr 217.148.215.77)
20.03.05 202100 1 -28 3.1 172 7 * CQ KB8RQ EM79 ? 0 3
20.03.05 202300 2 -28 3.2 4 4 * CQ KB8RQ EM79 0 10
20.03.05 203500 1 -27 3.2 21 16 * CQ KB8RQ EM79 ? 0 1
20.03.05 203700 1 -29 3.2 16 21 * CQ KB8RQ EM79 0 10
20.03.05 204100 1 -27 3.2 22 4 * CQ KB8RQ EM79 0 10
20.03.05 204300 2 -27 3.2 24 3 * CQ KB8RQ EM79 0 10
20.03.05 204500 1 -29 3.3 29 40 * CQ KB8RQ EM79 0 7
20.03.05 205300 1 -29 3.1 32 5 * CQ KB8RQ EM79 ? 0 5
20.03.05 205900 1 -26 3.2 32 2 * CQ KB8RQ EM79 0 10
20.03.05 212300 1 -29 2.8 -11 18 * CQ KB8RQ EM79 0 10
20.03.05 212700 1 -29 2.8 3 3 * CQ KB8RQ EM79 0 10
20.03.05 214901 2 -27 2.2 -3 25 * CQ KB8RQ EM79 0 10
--------------------------------------------------------------------------
21.03.05 153600 4 -25 4.0 0 3 * CQ V RN6BN 1 0
21.03.05 153600 4 -25 4.0 0 3 * CQ V RN6BN 1 0
21.03.05 155200 8 -20 3.9 3 2 * CQ V RN6BN 1 0
21.03.05 155600 3 -27 4.4 0 6 # OK1TEH RN6BN KN95 OOO 0 10
21.03.05 155800 4 -27 -1 5 RRR 0 0
21.03.05 160000 5 -27 -2 3 RRR 0 0
21.03.05 160200 8 -25 -2 6 73 0 0
21.03.05 160400 3 -24 3.2 -2 6 * CQ V RN6BN 1 0
21.03.05 162800 2 -26 3.0 -16 2 * CQ RN6BN KN95 0 10
21.03.05 163001 4 -29 2.7 -14 3 * CQ RN6BN KN95 0 9
--------------------------------------------------------------------------
QSB DURING TESTS WITH I2FAK & KB8RQ (FARADAY'S ROTATION)
SOME PICTURES..
Antenna is ready for EME test with I2FAK-
elevation on about 7degrees
(23.1.2005)
Antenna after qso with W5UN-
elevation on about 27degrees
(14.2.2005)
